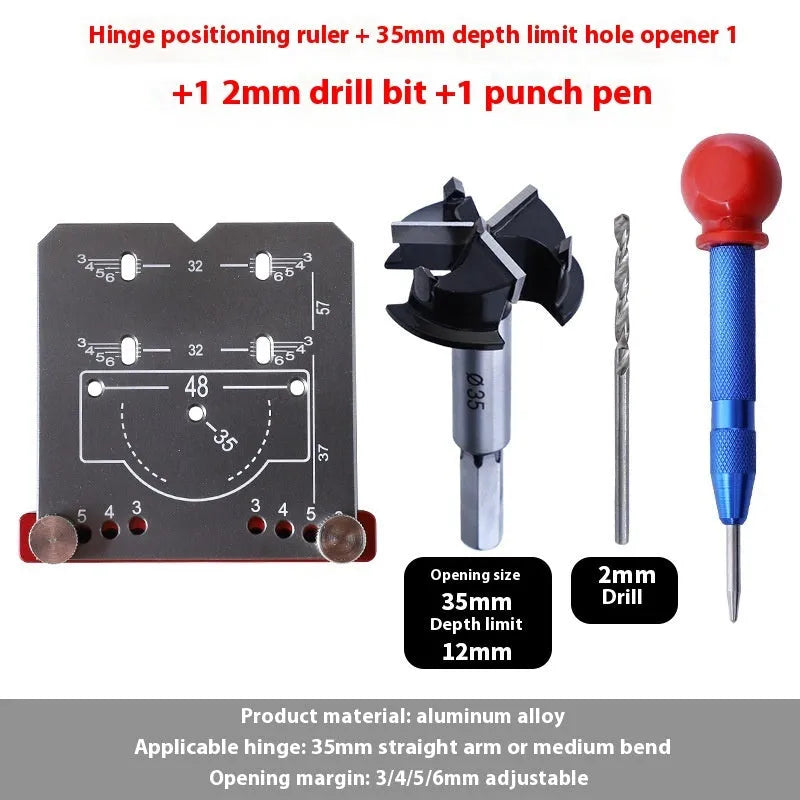

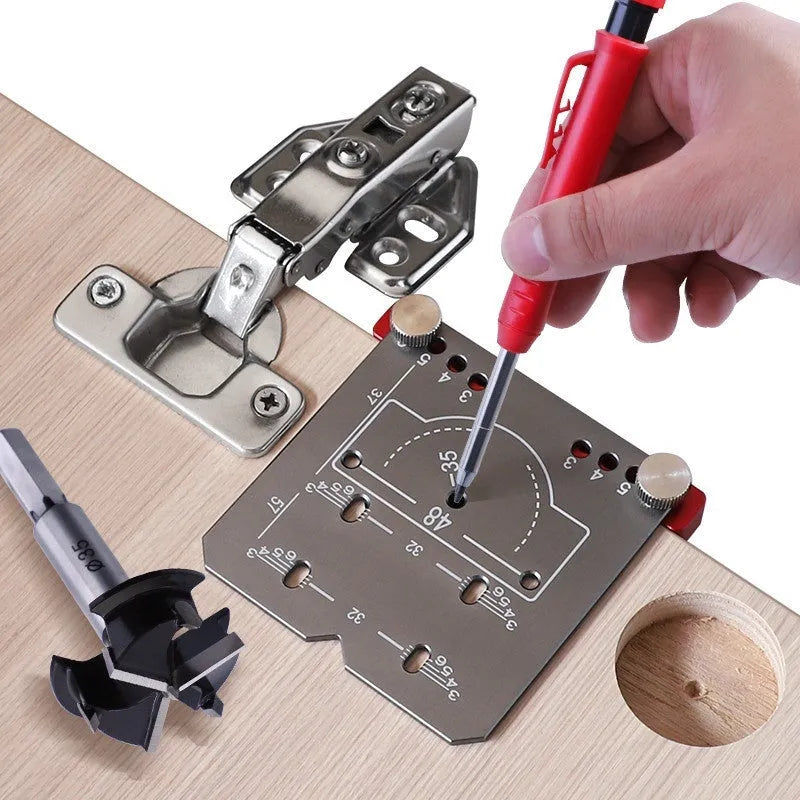

35mm Hinge Punch Locator with Adjustable Margin Mark Number: A high-quality aluminium alloy ruler for precise cabinet door hinge installation, featuring a hard alloy blade and 3-6mm margin adjustment.

£31.98

style Hinge Locating Rule Suit Red Hinge Locating Rule Red Hinge Locating Rule Suit Hinge Locating Rule

35mm Hinge Punch Locator: Adjustable Margin Tool for Accurate Cabinet Door Installation

This aluminium alloy hinge locator provides a reliable solution for installing 35mm cabinet hinges with precision. The tool features adjustable margin settings from 3mm to 6mm, allowing customization for different cabinet designs. Its integrated hard alloy blade creates clean, accurate markings for drilling, eliminating the guesswork from DIY woodworking projects. The durable construction ensures consistent performance through multiple installations, making it suitable for both home improvement enthusiasts and professional cabinet makers.

Features and Construction Quality

The hinge locator combines practical design with durable materials to deliver reliable performance. Each component has been selected for specific functional requirements, from the lightweight aluminium alloy frame to the heat-treated cutting blade. This section details the technical specifications and construction elements that contribute to the tool's accuracy and longevity in woodworking applications.

Aluminium Alloy Frame Design

Measuring approximately 30cm in length, the aluminium alloy frame provides a stable platform for hinge marking while remaining lightweight enough for comfortable handling. The material offers excellent corrosion resistance, maintaining dimensional stability through repeated use. The ruler features clearly marked measurement indicators and precisely machined guide holes that ensure consistent hole placement for 35mm hinge installation.

Hard Alloy Blade Technology

The integrated limit tapper incorporates a hard alloy blade that has undergone high-temperature heat treatment, achieving a hardness rating of approximately 58-62 HRC. This treatment process enhances the blade's wear resistance, allowing it to maintain sharpness through numerous marking operations. The blade thickness of approximately 2mm provides sufficient rigidity for clean penetration into wood surfaces without bending or deflection.

Durable Construction Details

The aluminium alloy construction resists deformation under normal use conditions, while the heat-treated blade maintains its cutting edge through repeated applications. The adjustment mechanism for margin settings features positive detents at each position (3, 4, 5, and 6mm) to prevent accidental movement during use. All moving parts operate smoothly without excessive play, ensuring consistent positioning accuracy throughout the tool's service life.

Practical Applications and Usage Scenarios

This hinge locator addresses specific needs in cabinet installation and woodworking projects. Its design focuses on solving common problems encountered when fitting doors to cabinets and wardrobes, particularly ensuring proper alignment and smooth operation. The following sections explore how the tool performs in various installation contexts and user scenarios.

Professional Cabinet Installation

For cabinet makers and professional installers, the locator provides consistent results across multiple installations. The adjustable margin feature allows customization for different cabinet styles, from traditional overlay doors to contemporary inset designs. The hard alloy blade creates precise markings that translate to accurate hole placement, reducing the need for adjustments during fitting. This consistency saves time on installation projects while improving the quality of finished work.

DIY Home Improvement Projects

Home woodworking enthusiasts appreciate the straightforward operation that requires minimal technical skill. The tactile feedback from the aluminium alloy frame feels substantial in hand, while the clear markings make setup intuitive. When pressing the limit tapper into wood, users notice the blade's sharp penetration that creates clean indentations without tearing fibres. This precise marking leads to cleaner drill holes and better hinge alignment in finished cabinets.

Versatile Woodworking Applications

While specifically designed for 35mm hinge installation, the locator adapts to various woodworking tasks requiring precise hole spacing. The adjustable margin feature allows creation of consistent offsets for other hardware installations, such as drawer slides or mounting plates. The durable construction withstands workshop environments, maintaining accuracy through multiple projects. The tool's compact size makes it easy to store with other measuring instruments.

Performance Benefits and Value Considerations

The hinge locator delivers measurable advantages in cabinet installation through its precise design and durable construction. These benefits translate to practical value for users ranging from DIY enthusiasts to professional woodworkers. This section examines how the tool's specific features contribute to improved outcomes and long-term reliability in woodworking applications.

Long-Term Value and Durability

Compared to disposable marking methods or improvised templates, the aluminium alloy construction provides lasting value through repeated use. The heat-treated blade maintains sharpness significantly longer than standard steel punches, reducing replacement frequency. For regular users, this durability translates to lower long-term costs despite the higher initial investment compared to basic marking tools. The tool's consistent performance ensures reliable results project after project.

User Experience and Satisfaction

Confidence in installation accuracy comes from the tool's precise margin settings and stable aluminium alloy frame. Users experience reduced frustration when cabinet doors align correctly on the first attempt, avoiding time-consuming adjustments. The positive detents at each margin setting provide tactile confirmation of selection, while the clear markings prevent setup errors. This reliability contributes to satisfaction with both the installation process and finished results.

Practical Advantages for Purchase

The hinge locator offers measurable time savings by eliminating trial-and-error positioning during cabinet installation. The adjustable margin feature accommodates various design requirements without additional tools, while the durable construction ensures consistent performance. For anyone regularly installing cabinet doors, the tool provides a reliable solution that improves installation quality while reducing project time. The specific design for 35mm hinges makes it particularly valuable for modern cabinet installations.
