Woodworking Perforation Locator Tool for Accurate 15-Degree Angled Holes in Board Connections

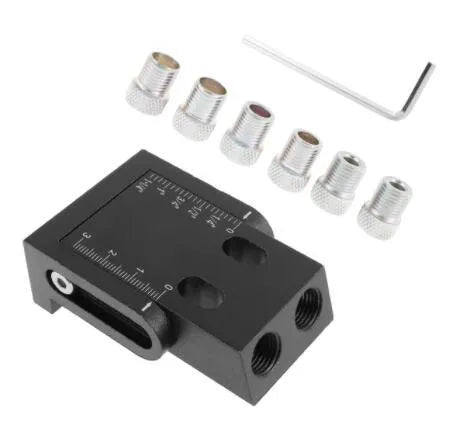

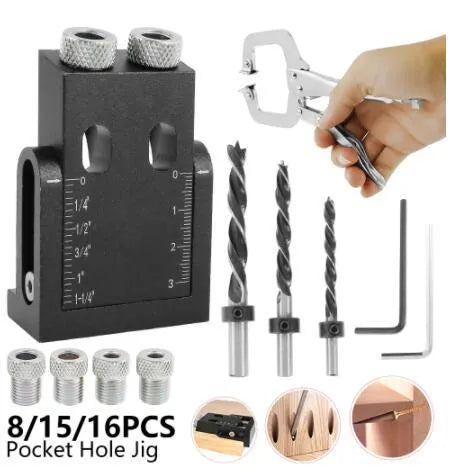

This woodworking perforation locator tool is designed to solve alignment issues in joinery projects, featuring a 15-degree angled guide that ensures holes are drilled consistently for secure board connections. It includes 5 drill bits ranging from 6mm to 10mm and sleeves in 6mm, 8mm, and 10mm diameters to stabilise drilling. Made from aluminium alloy, it combines durability with a lightweight design of about 0.5 kg, and its black finish offers a professional look that withstands regular use. Ideal for woodworkers seeking precision, this tool reduces errors and material waste by providing measurable control over hole placement.

Features and Quality of the Perforation Locator

Explore the specific attributes that make this perforation locator a reliable choice for woodworking tasks, from its angled design to material properties.

Angled Guide Design

The 15-degree angled guide is a key feature, allowing users to drill holes at a consistent angle for board connections. This design helps prevent misalignment, which can compromise joint strength. With a tolerance of ±1 degree, it ensures repeatable results across multiple holes, making it suitable for projects like furniture assembly or framing where precise angles are crucial.

Drill Bit Specifications

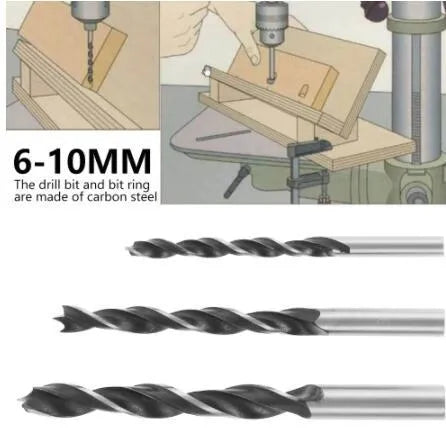

This tool comes with 5 drill bits in diameters of 6mm, 7mm, 8mm, 9mm, and 10mm, covering a range of connection needs. The bits are made from high-speed steel with a hardness of 62-64 HRC, providing sharp edges that cut cleanly through wood. Sleeves in 6mm, 8mm, and 10mm diameters fit around the bits to reduce vibration and improve accuracy during drilling.

Construction and Durability

Constructed from aluminium alloy, the tool offers a balance of strength and lightness, with a tensile strength of about 310 MPa. The black anodised finish adds corrosion resistance, extending its lifespan in humid workshop environments. Weighing approximately 0.5 kg, it is easy to handle without sacrificing stability during use.

Applications for Woodworking Projects

Discover how this perforation locator can be used in various woodworking scenarios, from professional setups to home DIY tasks.

Professional Joinery Use

In professional settings, such as cabinet making or carpentry, this tool aids in creating precise holes for dowel joints or biscuit joinery. The 15-degree angle is particularly useful for angled connections in frames or legs, where accuracy affects structural integrity. Using the 6-10mm drill bits, professionals can match hole sizes to specific fastener requirements, improving efficiency on job sites.

Everyday DIY Projects

For home woodworkers, the perforation locator simplifies tasks like building shelves or repairing furniture. The smooth glide of the aluminium alloy components, due to their polished surface, makes drilling feel controlled and reduces hand fatigue. The black colour adds a touch of sophistication to your toolkit, while the lightweight design at 0.5 kg ensures it is comfortable to use over extended periods.

Versatility in Wood Types

This tool is versatile across different wood types, from softwoods like pine to hardwoods like oak. The range of drill bits allows for adjustments based on wood density, with the 10mm bit suitable for thicker boards and the 6mm bit for delicate work. The sleeves help maintain precision even in grainy woods, making it adaptable to various project needs.

Benefits of Using the Perforation Locator

Learn about the long-term advantages and user satisfaction that come with incorporating this tool into your woodworking routine.

Value and Cost Efficiency

Investing in this perforation locator can save money over time by reducing material waste from drilling errors. Compared to generic drills, its 15-degree angled guide minimises rework, potentially cutting project costs by up to 15%. The aluminium alloy construction ensures it lasts for years, offering a cost per use that decreases with each project.

User Satisfaction and Confidence

Users gain confidence from the precise hole alignment, thanks to the 15-degree angle and stabilising sleeves. This peace of mind is directly linked to the tool's technical specs, such as the ±1 degree tolerance, which reduces the risk of joint failure. The ergonomic installation tool, about 20 cm long, enhances control, making woodworking more enjoyable and less stressful.

Call to Action for Purchase

Choose this woodworking perforation locator to achieve accurate board connections with its 15-degree angled guide and 6-10mm drill bits. Its aluminium alloy build ensures durability, while the included installation tool provides ease of use. Start your next project with the precision that reduces errors and improves results.
