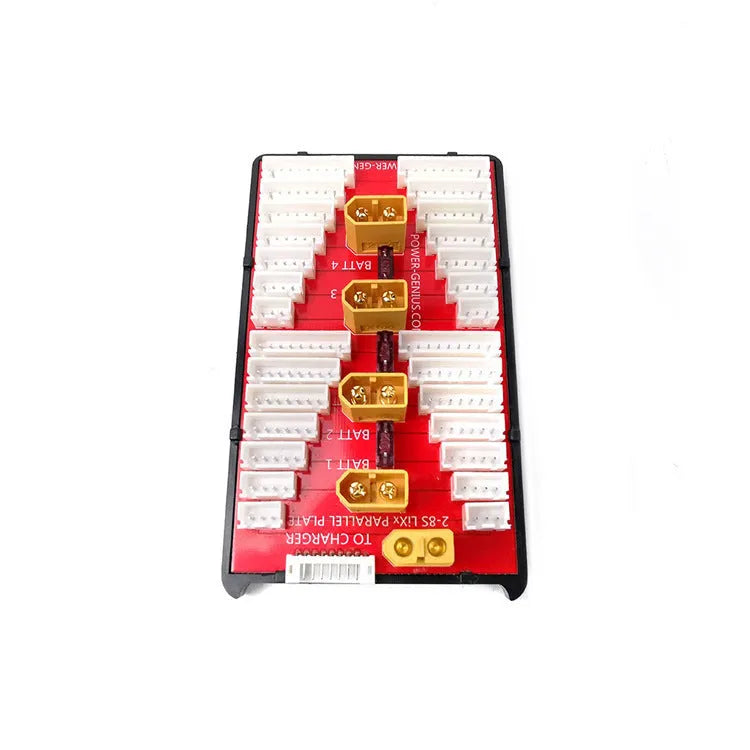

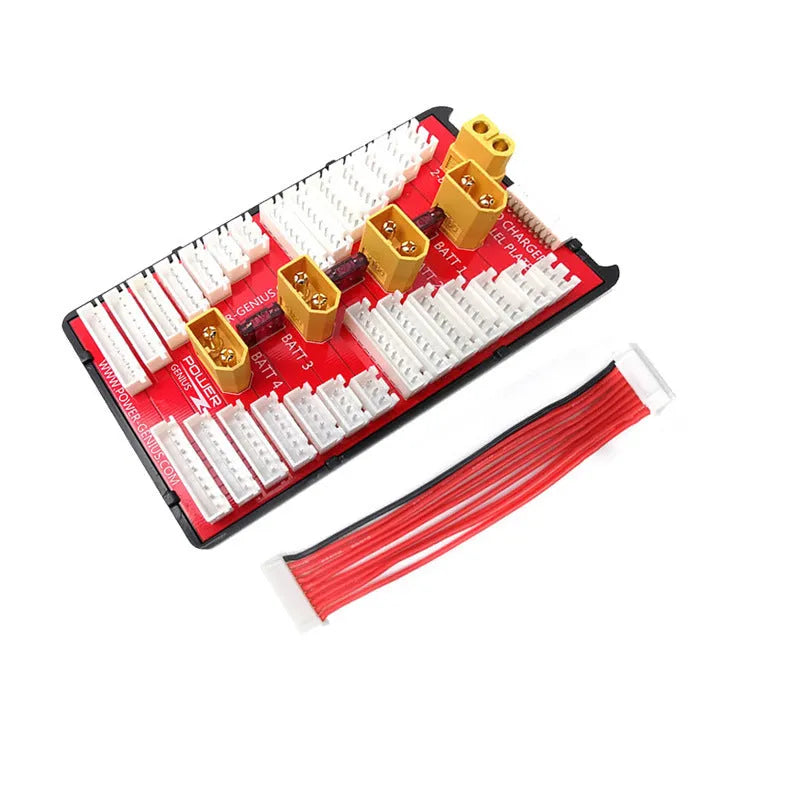

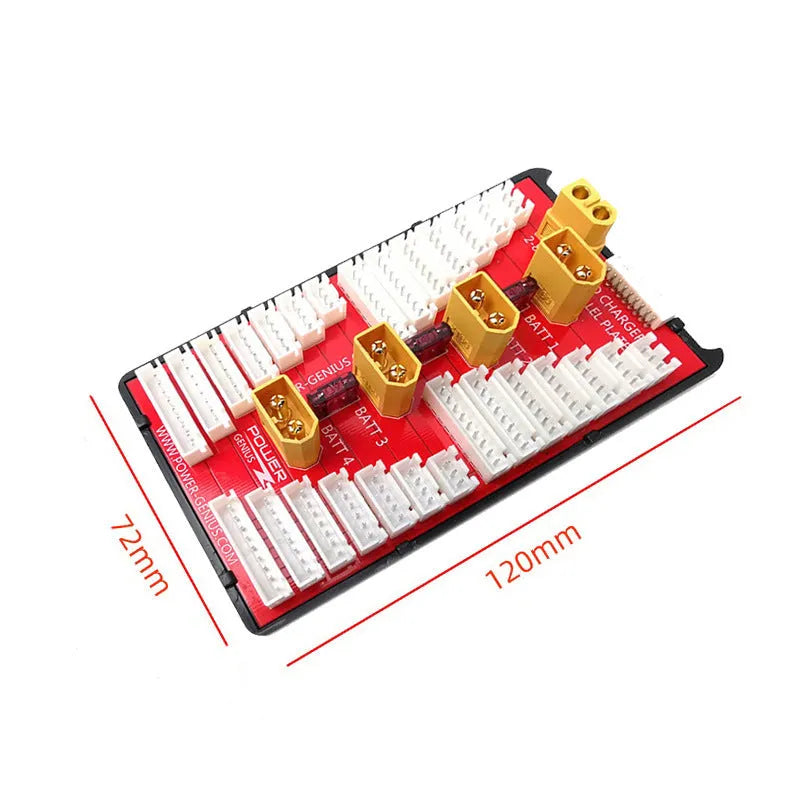

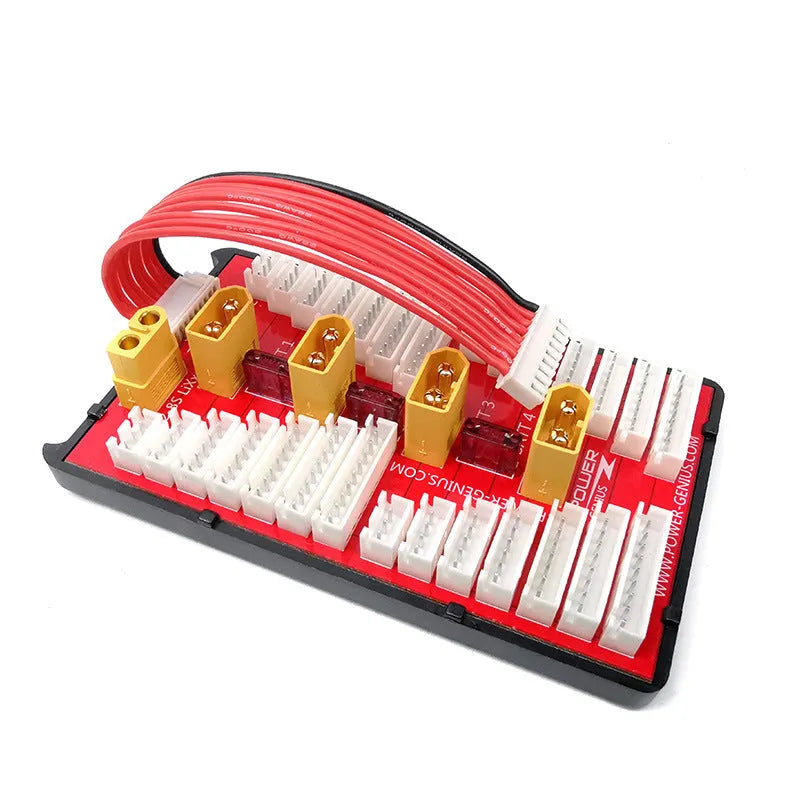

V2 Parallel Charge Board: Simultaneous Charging for 4 Sets of 2-8S Lithium Battery Packs with 35A Current Support

This V2 parallel charging board revolutionises how enthusiasts and professionals manage multiple lithium battery packs by enabling simultaneous charging of up to 4 sets of 2-8S batteries with identical cell counts. By consolidating what would typically require 4 separate balance charging sessions into a single operation, it significantly reduces the time spent on battery management. The board incorporates specific safety features including 40A fuses between battery groups and high-quality gold-plated connectors, while supporting charging currents up to 35A through its thicker PCB copper foil construction. This practical solution eliminates the repetitive task of swapping batteries during charging cycles, making it particularly valuable for users with multiple battery packs who need efficient charging solutions.

Technical Specifications and Construction Quality

The V2 parallel charge board combines robust electrical engineering with practical safety features designed for reliable performance in demanding charging scenarios. From its current-handling capabilities to its protective components, each element has been selected to ensure consistent operation while minimising potential risks associated with parallel battery charging.

Electrical Design and Current Capacity

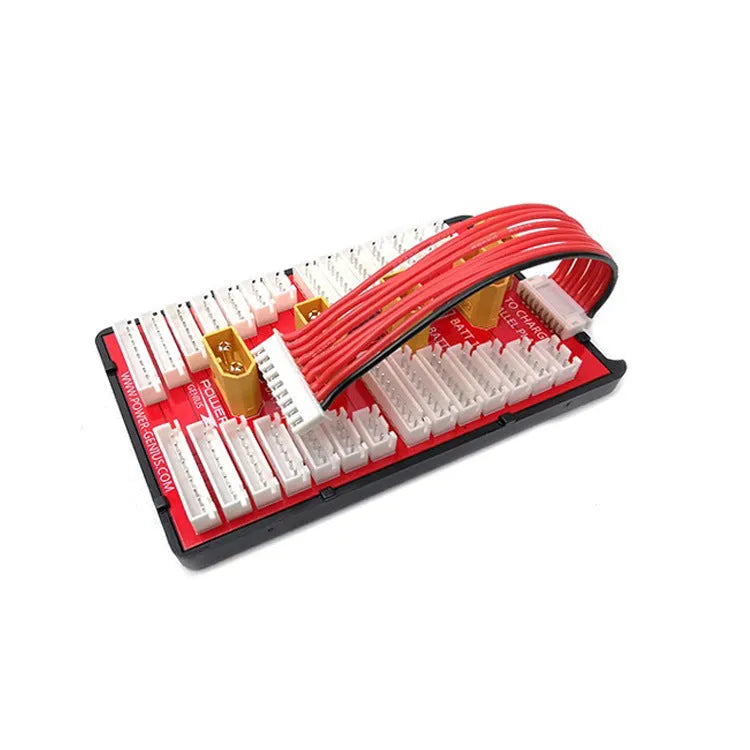

At the core of this parallel charging board is a PCB featuring thicker copper foil specifically engineered to support charging currents up to 35A. This construction allows the board to handle the combined current requirements when charging multiple battery packs simultaneously. The electrical pathway incorporates 18AWG multi-strand silicone wire for the balance port output lines, providing both the current-carrying capacity needed for efficient charging and the flexibility required for practical installation. Gold-plated connectors maintain optimal conductivity while resisting corrosion that could develop over extended use with various battery chemistries.

Safety Systems and Protection Features

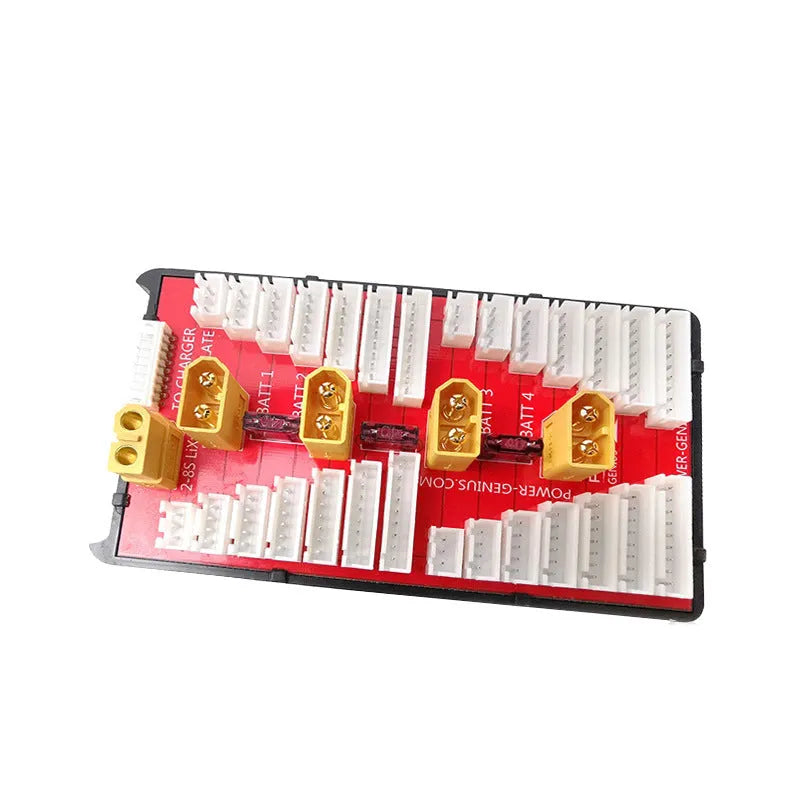

Between each pair of battery groups, the board incorporates 40A fuses designed to prevent circuit burnout that could occur from excessive voltage differences between connected batteries. This protection mechanism activates when the voltage differential exceeds safe operating parameters, with the manufacturer recommending that initial cell voltage variance should not exceed 0.1V when connecting batteries to the board. The inclusion of safety protective T plug silicone caps allows users to cover any unused connectors, preventing accidental short circuits that could occur if metal objects contact exposed terminals during the charging process.

Construction Durability and Component Quality

Practical Applications and Usage Scenarios This parallel charging board serves multiple user groups across various applications where efficient battery management directly impacts productivity and convenience. From professional environments requiring rapid battery turnaround to hobbyist settings where multiple battery packs are regularly cycled, the board's capabilities address specific charging challenges with measurable time savings.

Professional Drone and RC Vehicle Operations

For commercial drone operators and professional RC racing teams, battery management represents a significant portion of operational time. This parallel charging board allows four 6S 5000mAh lithium polymer batteries to be charged simultaneously, transforming what would require approximately 4 hours of individual charging into a single 1-hour session when using appropriate charging equipment. The 35A current capacity supports the higher charge rates needed for rapid turnaround between flights or races, while the 40A fuse protection ensures safety even when batteries at slightly different charge states are connected. The board's design accommodates the standard balance connectors used across most professional-grade lithium battery packs.

Hobbyist and Enthusiast Battery Management

RC hobbyists with multiple vehicles often maintain several battery packs that require regular charging cycles. The tactile experience of connecting batteries to this board—with the secure click of gold-plated connectors and the soft flexibility of silicone wiring—simplifies what was previously a repetitive task. The practical benefit comes from charging four 3S 2200mAh batteries simultaneously rather than sequentially, reducing total charging time from approximately 3 hours to 45 minutes when using a compatible charger. The included silicone caps provide peace of mind when the board isn't in use, covering exposed connectors to prevent accidental contact that could cause short circuits in workshop environments.

Versatility Across Battery Configurations

This charging board accommodates various lithium battery configurations from 2S to 8S, making it suitable for everything from small quadcopters to larger scale RC models. The parallel connection maintains the cell count (S number) while combining capacities additively—connecting two 4S 5000mAh batteries creates effectively a 4S 10000mAh battery for charging purposes. This capability allows users to charge batteries with different capacities simultaneously, provided they share the same cell count, offering flexibility in battery management. The board's design supports even batteries not specifically rated for high C-number charging, as the distributed current across parallel connections reduces the individual demand on each battery during the charging process.

Measurable Benefits and Value Considerations

The practical advantages of this parallel charging board extend beyond simple convenience to deliver quantifiable time savings and operational efficiencies. By examining specific usage scenarios and comparing traditional charging methods against this parallel approach, the tangible benefits become clearly apparent in both professional and hobbyist contexts.

Time Efficiency and Operational Value

When charging four 4S 5000mAh lithium polymer batteries individually, each requiring approximately 1 hour for a balance charge, the total time investment reaches 4 hours plus the additional time spent swapping batteries between charges. Using this parallel board consolidates this process into a single 1-hour charging session, representing a 75% reduction in active charging time and eliminating the manual intervention previously required. For commercial operators charging multiple battery sets daily, this time saving translates directly to increased operational capacity—potentially enabling additional flights or sessions within the same timeframe. The board's 35A current capacity ensures that even when charging four batteries simultaneously, the charge rate remains practical without requiring excessively powerful charging equipment.

User Experience and Operational Confidence

The inclusion of 40A fuses between battery groups provides practical reassurance during the charging process, particularly when connecting batteries that may have slight voltage variations from previous use. This protection mechanism, combined with the manufacturer's specific guidance to maintain initial cell voltage differences under 0.1V, creates a systematic approach to safe parallel charging. The physical design—with clearly labelled connection points and colour-coded wiring where applicable—simplifies the setup process, reducing the potential for connection errors that could occur with more complex parallel charging setups. The gold-plated connectors maintain consistent electrical contact throughout repeated use cycles, ensuring reliable performance that users can depend on for regular battery management.

Practical Implementation and Purchase Decision

This parallel charging board represents a practical solution for anyone regularly managing multiple lithium battery packs, with its most significant benefit being the substantial reduction in charging time—up to 75% when charging four battery sets simultaneously. The specific technical specifications, including 35A current capacity, 40A fuse protection, and 18AWG silicone wiring, provide the necessary performance characteristics for safe and efficient parallel charging operations. For users currently charging batteries individually, the transition to this parallel system requires only the board itself and appropriate charging equipment capable of delivering the combined current requirements of multiple batteries. The measurable time savings, combined with the safety features designed to protect both equipment and batteries, make this board a practical investment for streamlining battery management workflows.
