Single Power Supply 10-24V Super Dynamic Bass Boost Front Stage Board: 22Hz-300Hz Frequency Range Audio Processing

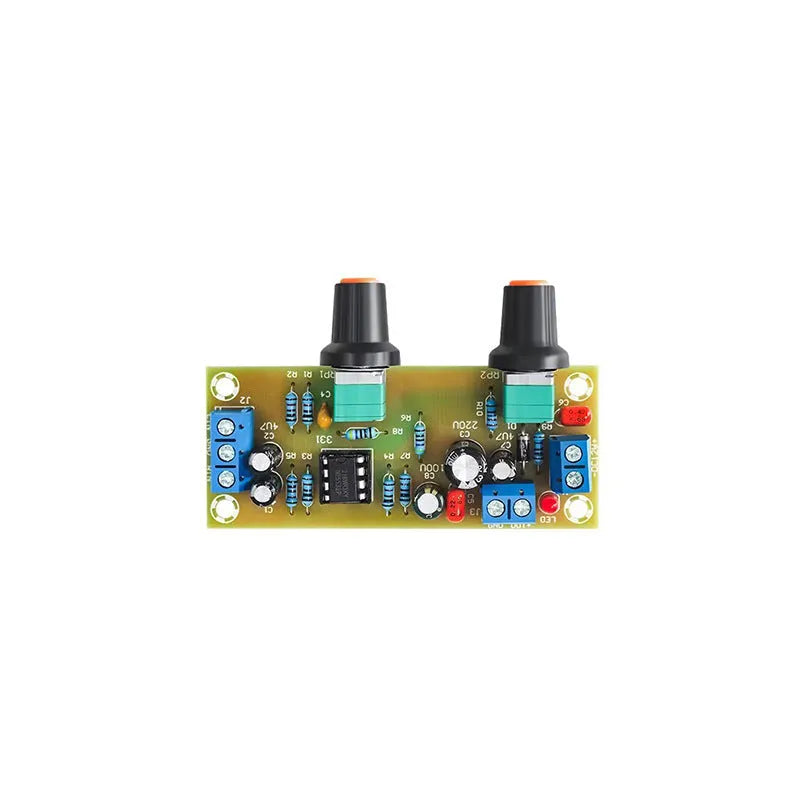

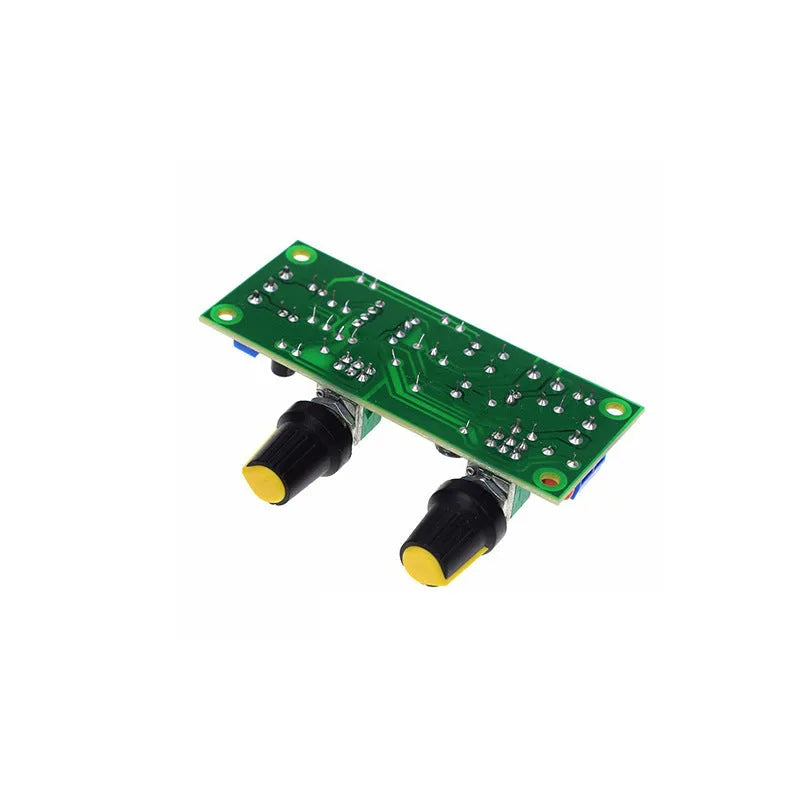

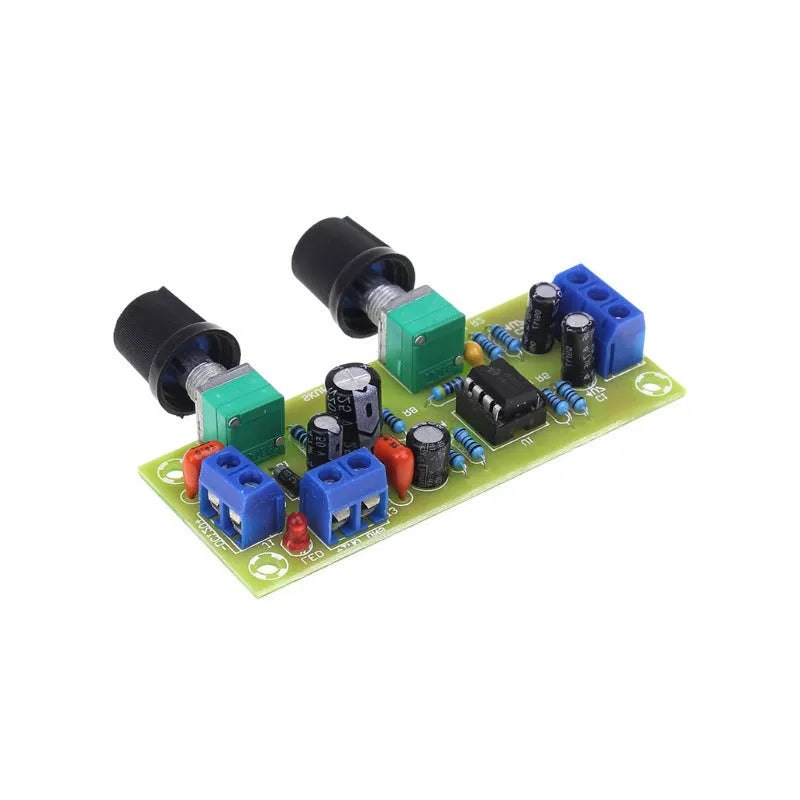

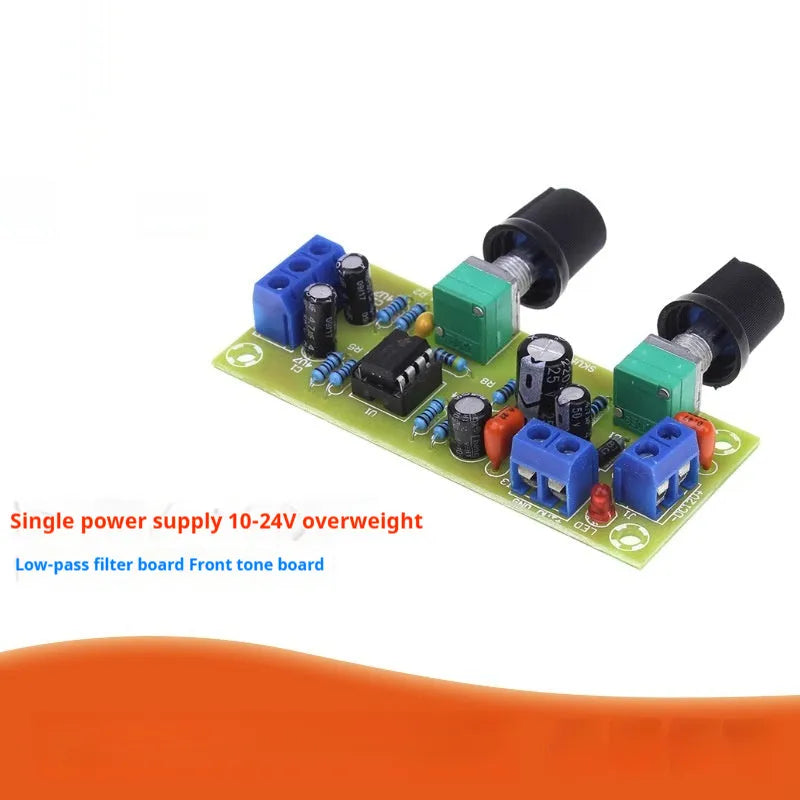

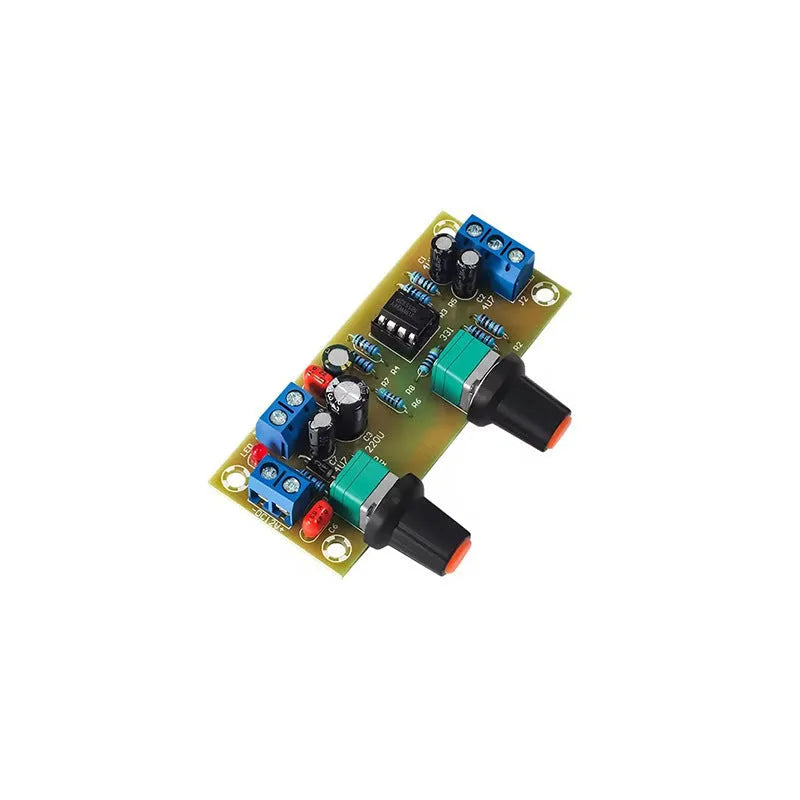

This front stage board provides dedicated bass management for audio systems requiring enhanced low-frequency control. With a 22Hz-300Hz frequency range, it processes sub-bass and mid-bass signals through mono audio output. The DC 10-24V single power supply accommodates various installation scenarios from car audio to portable setups. Measuring 78x32mm with 1.6mm thickness, the super hardness FR-4 fibreglass PCB maintains component stability while weighing just 30g for minimal added bulk.

Technical Specifications and Construction Quality

The board's design prioritises reliable audio processing through precise engineering specifications and durable materials.

PCB Dimensions and Mounting Design

The 78x32mm PCB uses 1.6mm thickness FR-4 fibreglass material for structural integrity. Plate fixing holes have 70x24mm centre spacing with 3.2mm diameter, allowing secure mounting in enclosures or chassis. Potentiometer shafts maintain 32.5mm centre spacing for consistent control placement. These measurements ensure compatibility with standard audio equipment layouts while providing stable mounting points.

Electrical Performance Parameters

Operating on DC 10-24V single power supply, the board adapts to various voltage sources without additional converters. The 22Hz-300Hz frequency range covers fundamental bass frequencies for musical instruments and audio effects. Mono audio input accepts single or dual channel signals, while mono output delivers processed bass signals to amplification stages. This configuration simplifies signal routing in audio processing chains.

Material Durability and Weight

Super hardness FR-4 fibreglass PCB material resists warping and maintains circuit integrity under normal operating conditions. The 30g net weight minimises stress on mounting points while providing sufficient mass for component stability. This construction approach balances durability with practical installation considerations in mobile or fixed audio applications.

Practical Applications and Usage Scenarios

This front stage board serves multiple audio enhancement purposes across different environments and system configurations.

Car Audio System Integration

In vehicle installations, the 10-24V power range matches typical automotive electrical systems without requiring voltage regulation. The 78x32mm footprint fits within dashboard cavities or boot compartments where space is limited. Bass frequencies between 22Hz-300Hz enhance music reproduction while complementing existing speaker capabilities. Installers appreciate the standard 3.2mm mounting holes that accept common hardware.

Home Audio and Portable Setups

For home systems, the board processes bass signals before amplification, allowing fine-tuning of low-frequency response. The tactile experience of adjusting potentiometers spaced 32.5mm apart provides precise control over bass levels. In portable applications, the 30g weight adds minimal burden while the FR-4 fibreglass construction withstands transportation vibrations. Users benefit from consistent bass management across different listening environments.

Multi-System Compatibility

The board's mono input/output configuration interfaces with various audio sources and amplifiers. Bass enhancement applies equally to music playback, gaming audio, and multimedia content. The 22Hz lower limit reproduces deep bass notes while the 300Hz upper limit avoids interfering with mid-range frequencies. This versatility makes the board suitable for upgrading existing systems or building custom audio solutions.

Performance Benefits and Value Considerations

Users gain measurable audio improvements and long-term reliability through the board's specific design features.

Cost-Effective Bass Enhancement

Compared to complete audio system replacements, this front stage board provides targeted bass improvement at lower cost. The FR-4 fibreglass PCB material maintains performance over time without degradation common in cheaper substrates. By processing only bass frequencies, it reduces strain on main amplifiers while improving overall system efficiency. This focused approach delivers noticeable audio enhancement without unnecessary complexity.

Reliable Operation Confidence

The 10-24V power tolerance accommodates voltage fluctuations common in automotive and portable applications, providing peace of mind during use. Super hardness FR-4 material resists physical damage during installation or maintenance. Precise 70x24mm mounting hole spacing ensures secure attachment that prevents movement-induced connection issues. These technical specifications translate to dependable performance in various operating conditions.

Immediate Audio Improvement

Installation immediately expands bass control capabilities within existing audio systems. The 22Hz-300Hz range allows adjustment of specific bass frequencies that often require enhancement. Mono output delivers consistent signal to amplification stages without phase issues. By incorporating this board, users gain professional-grade bass management typically found in higher-priced audio equipment, making it a practical upgrade for enthusiasts and installers alike.
