PWM DC Motor Governor: Precise 1%-100% Speed Control with 5A, 90W Capacity

This PWM DC motor governor provides exact speed regulation for DC motors through adjustable pulse-width modulation. With an operating range from 4.5V to 35V DC and capacity for 5A output current at 90W power, it suits various motor control applications. The 20kHz PWM frequency ensures smooth operation without the audible whine associated with lower frequency controllers, while the compact 30mm × 26mm × 14mm dimensions allow installation in space-limited projects.

Technical Specifications and Performance Features

The governor's technical specifications determine its suitability for different motor control scenarios, from hobbyist projects to industrial applications requiring precise speed management.

Voltage and Current Operating Range

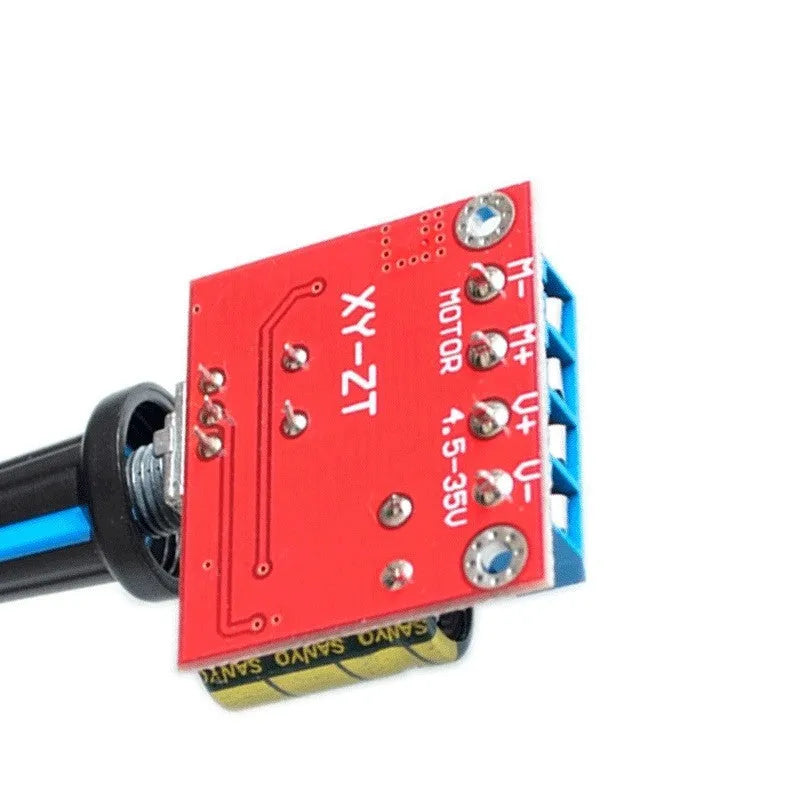

Operating on DC voltages from 4.5V to 35V, this governor accommodates various power sources including batteries, power supplies, and solar systems. The 5A maximum output current and 90W power handling capacity support motors used in robotics, ventilation systems, conveyor belts, and automated equipment. This wide compatibility range eliminates the need for multiple controllers across different voltage requirements.

PWM Frequency and Duty Cycle Control

Operating at 20kHz PWM frequency, this governor exceeds the audible range of most humans (typically 20Hz-20kHz), eliminating motor whine during operation. The adjustable duty cycle from 1% to 100% provides precise speed control, allowing gradual acceleration and deceleration rather than simple on/off switching. This precise control reduces mechanical stress on motor components and connected mechanisms.

Compact Design and Power Efficiency

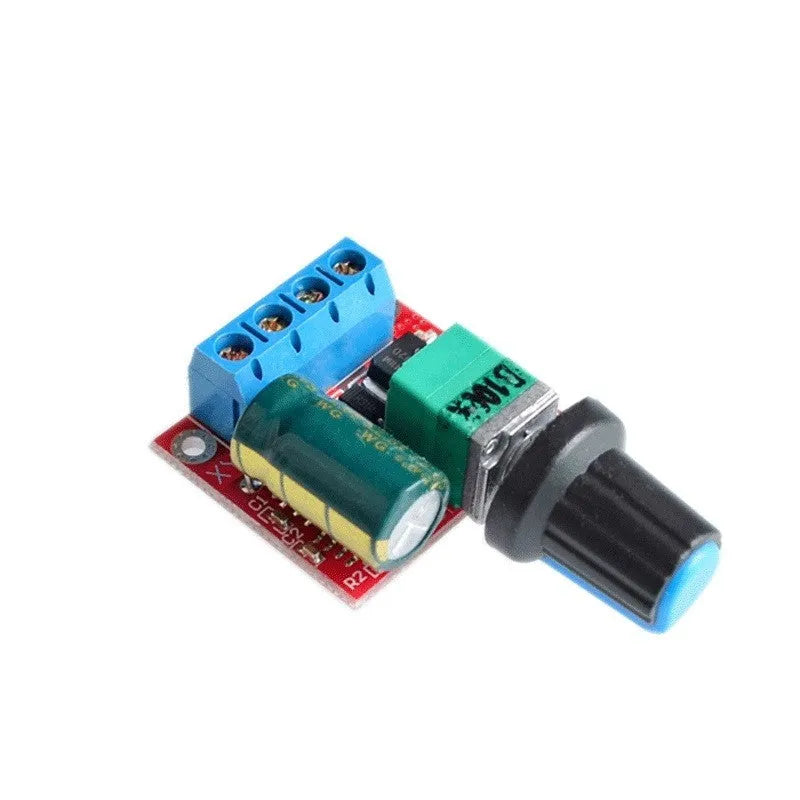

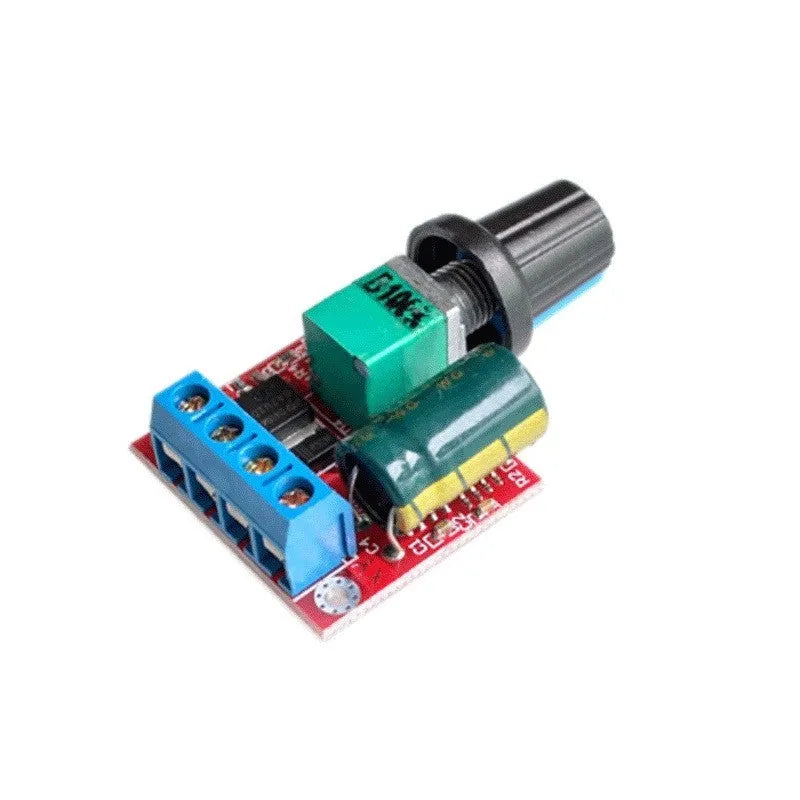

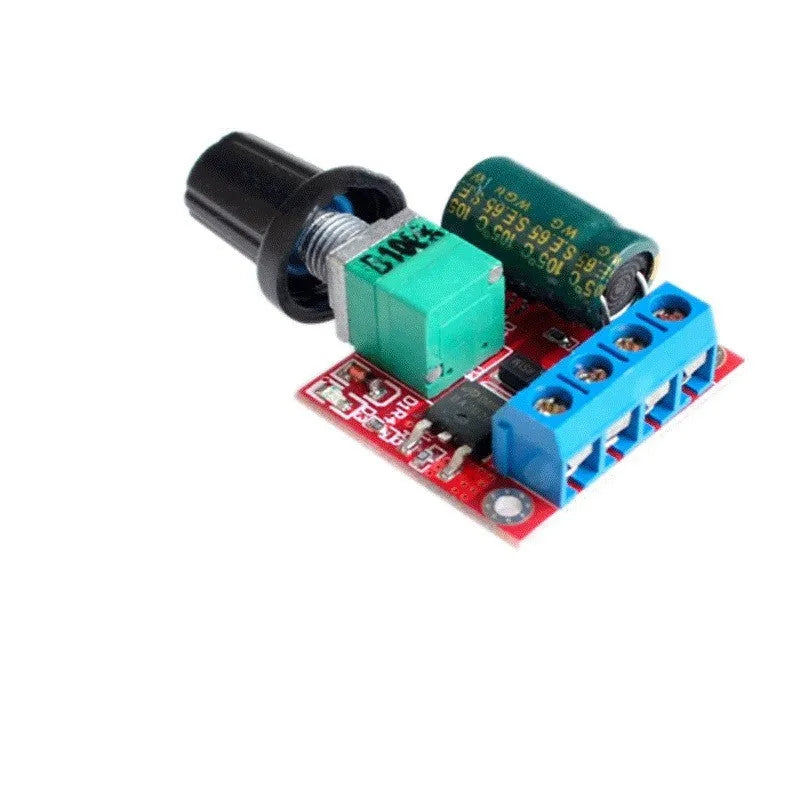

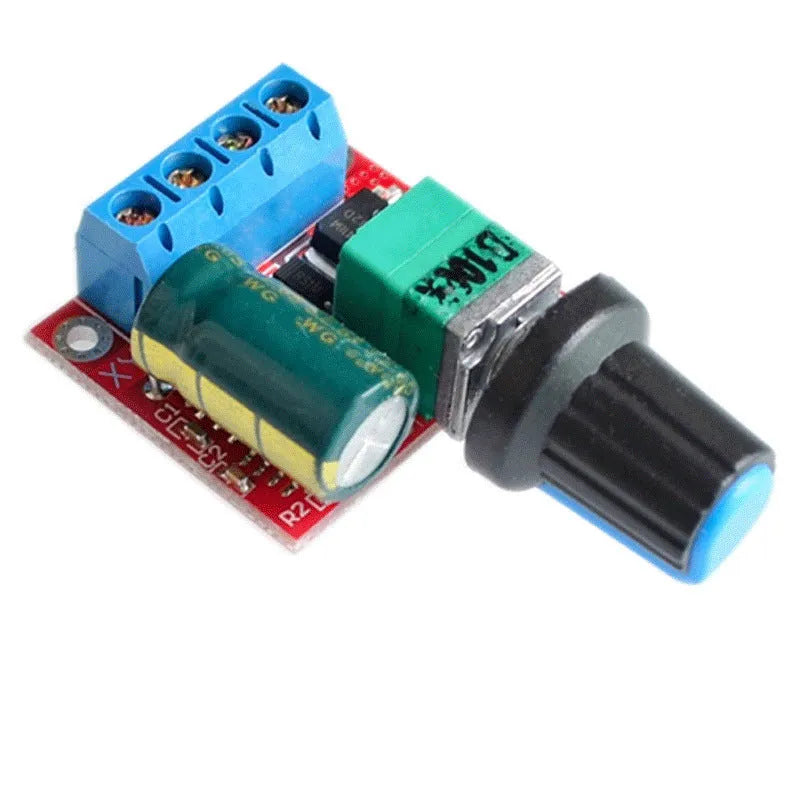

Measuring 30mm in length, 26mm in width (excluding handle), and 14mm in height, the compact design facilitates installation in confined spaces. The 7μA static current in standby mode minimises power consumption when the governor isn't actively controlling a motor, making it suitable for battery-powered applications where energy conservation matters. The PCB layout optimises heat dissipation for the 90W maximum power output.

Practical Applications and Usage Scenarios

This motor governor serves multiple applications across hobbyist, educational, and light industrial contexts where precise DC motor speed control enhances performance and functionality.

Robotics and Automation Projects

In robotics applications, the governor controls servo motor speed for precise movement in robotic arms, automated guided vehicles, and mechatronic systems. The 1%-100% duty cycle adjustment allows fine-tuning of motion speed for assembly tasks, material handling, or positioning operations. The 5A capacity supports motors used in small to medium robotic applications without requiring additional amplification.

Ventilation and Airflow Management

For ventilation systems, computer cooling, or laboratory equipment, the governor adjusts fan speeds to balance airflow with noise levels. The 20kHz operating frequency prevents audible interference in quiet environments like offices, bedrooms, or recording studios. Users can adjust the potentiometer knob to find the optimal balance between cooling performance and acoustic comfort for their specific application.

Educational and Prototyping Applications

In educational settings, the governor demonstrates PWM principles in electronics and mechatronics courses. Students can observe how duty cycle changes affect motor speed while learning about motor control fundamentals. For prototyping, the wide voltage range accommodates various development boards and power sources commonly used in electronics workshops and maker spaces across the UK.

Performance Benefits and Operational Advantages

The governor's design and specifications provide measurable benefits in motor control applications, from improved efficiency to extended equipment lifespan.

Energy Efficiency and Motor Protection

By allowing motors to operate at optimal speeds rather than maximum capacity, the governor reduces energy consumption in continuous operation applications. Gradual speed adjustment through PWM control minimises current spikes during startup, protecting motor windings and brushes from excessive wear. This controlled operation can extend motor lifespan in applications like conveyor systems or processing equipment where frequent starts and stops occur.

Precision Control and Operational Flexibility

Reliable Performance and Safety Features With clear warnings against AC mains connection and reverse polarity, the governor includes essential safety considerations for proper operation. The design handles the specified 5A, 90W capacity within its thermal limits when used according to instructions. For UK users, the compatibility with common DC voltage ranges (including 12V and 24V systems) makes it suitable for automotive, marine, and off-grid applications where precise motor control enhances system performance.
