Lithium Battery Charging and Protection Integrated Board: 5V Input with 4.2V ±1% Voltage Control

This integrated circuit board combines lithium battery charging and protection functions in a compact 2.6cm by 1.7cm package. Designed with a blue PCB and surface-mount components, it provides precise voltage regulation with 5V input compatibility for USB power sources. The 4.2V ±1% charging cut-off voltage ensures batteries reach optimal charge without overcharging damage, while the 1000mA maximum charging current enables efficient power restoration. Multiple protection layers including 2.5V over-discharge protection and 3A overcurrent protection create a comprehensive safety system for lithium battery applications in various electronic projects.

Technical Specifications and Circuit Protection Features

The board incorporates multiple voltage regulation and protection mechanisms that work together to manage lithium battery power safely. Each component has been selected for its specific function in the charging and protection circuit, creating a complete power management solution. The integration of these functions eliminates the need for separate charging and protection modules, simplifying circuit design while maintaining comprehensive safety features.

Voltage Regulation and Charging Control

Precise voltage control forms the core of this board's functionality, with the 4.2V ±1% charging cut-off voltage representing the primary regulation point. This specific voltage corresponds to the optimal charging limit for most lithium-ion cells, preventing the overcharging that causes reduced capacity and potential safety issues. The 5V input voltage provides compatibility with common power sources including USB ports and standard adapters, while the 1000mA maximum charging current determines how quickly batteries can be restored to full capacity without exceeding safe charging rates.

Protection Circuit Specifications

Multiple protection mechanisms operate simultaneously to safeguard both the battery and connected circuitry. The 2.5V battery over-discharge protection voltage prevents deep discharge that can permanently damage lithium cells, automatically disconnecting the load when voltage drops too low. The 3A overcurrent protection current monitors output conditions and interrupts the circuit if current exceeds this threshold, protecting against short circuits and excessive load demands. These protection features activate automatically without user intervention, providing continuous safety monitoring during operation.

Board Construction and Component Quality

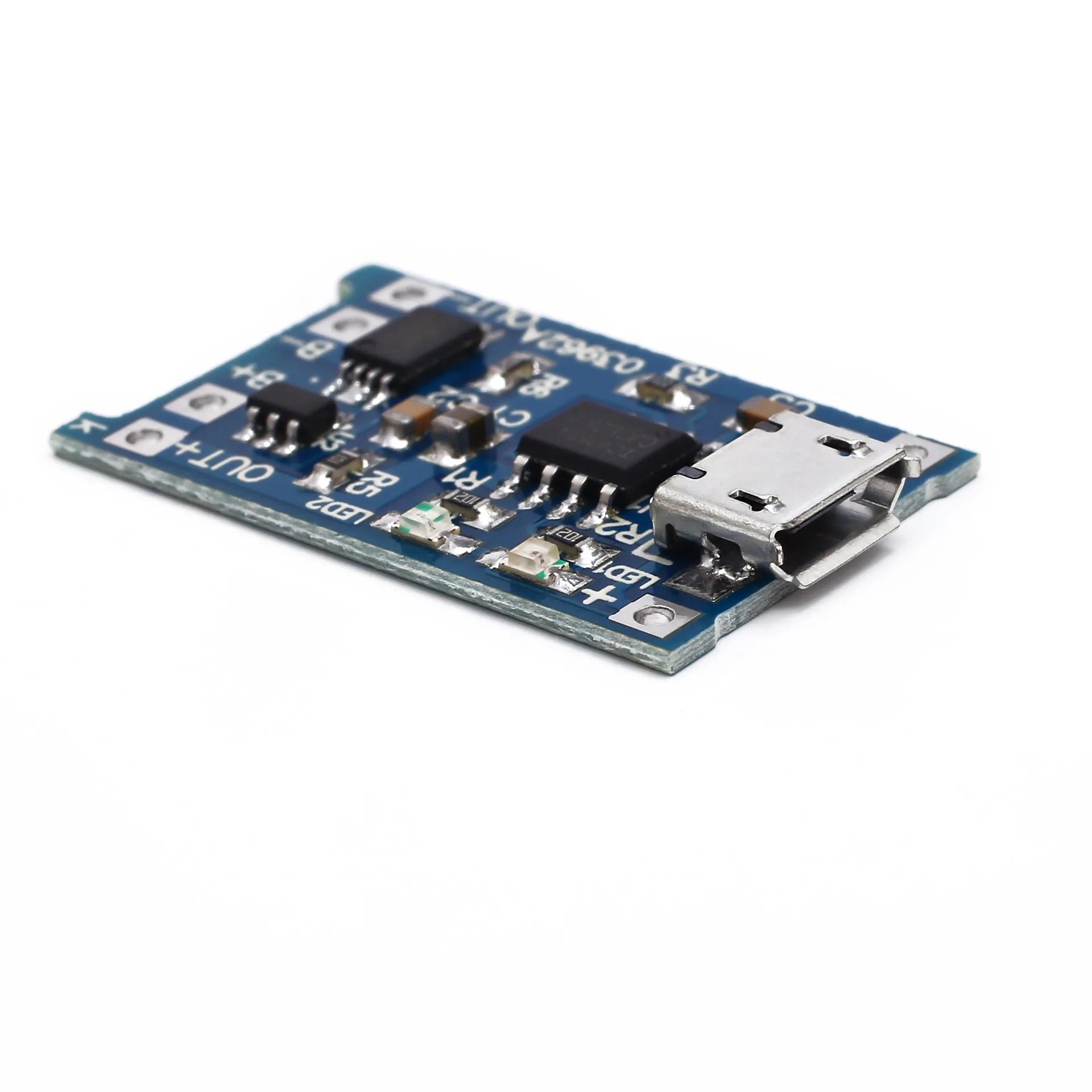

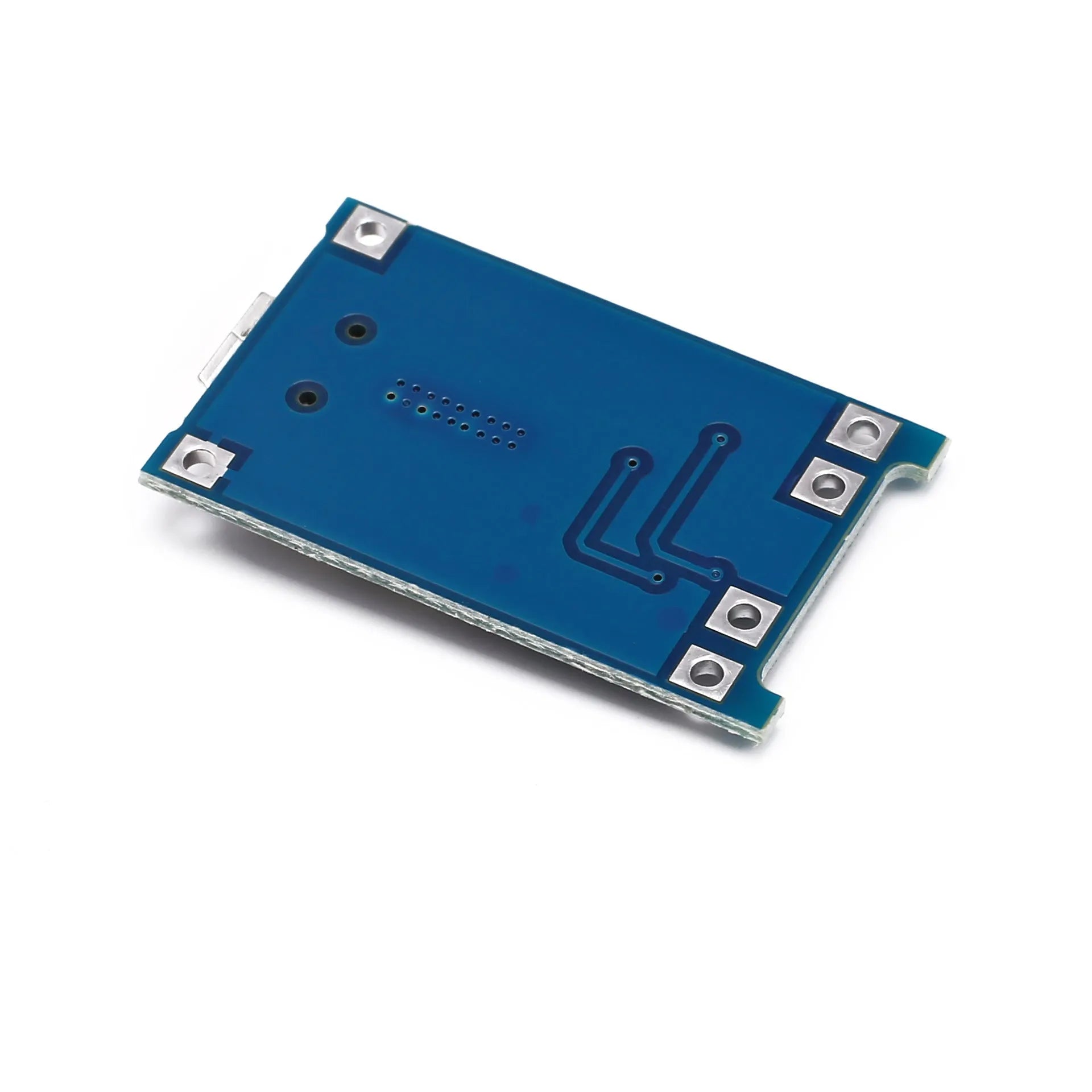

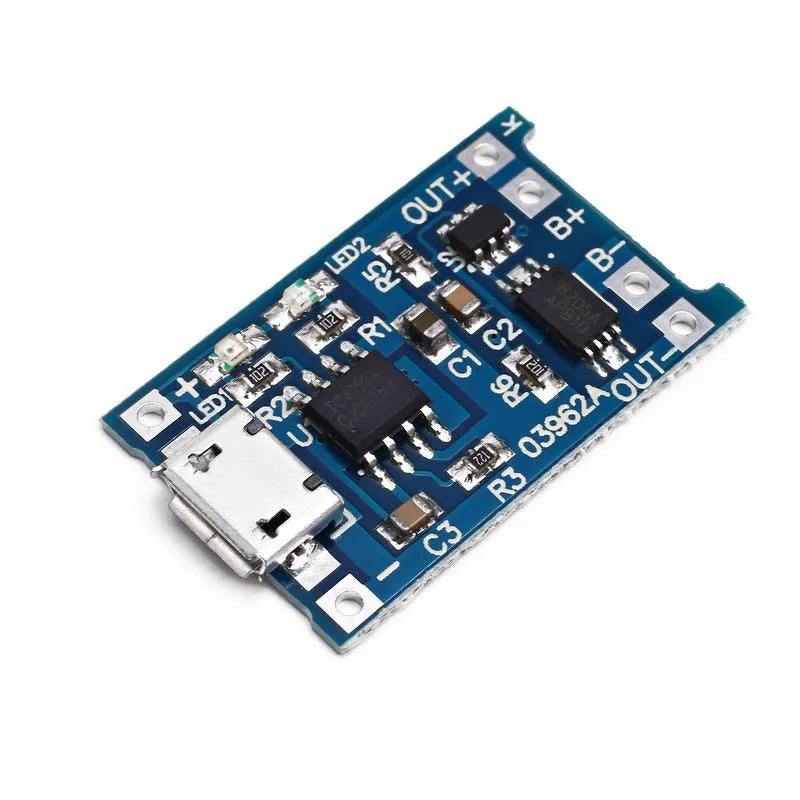

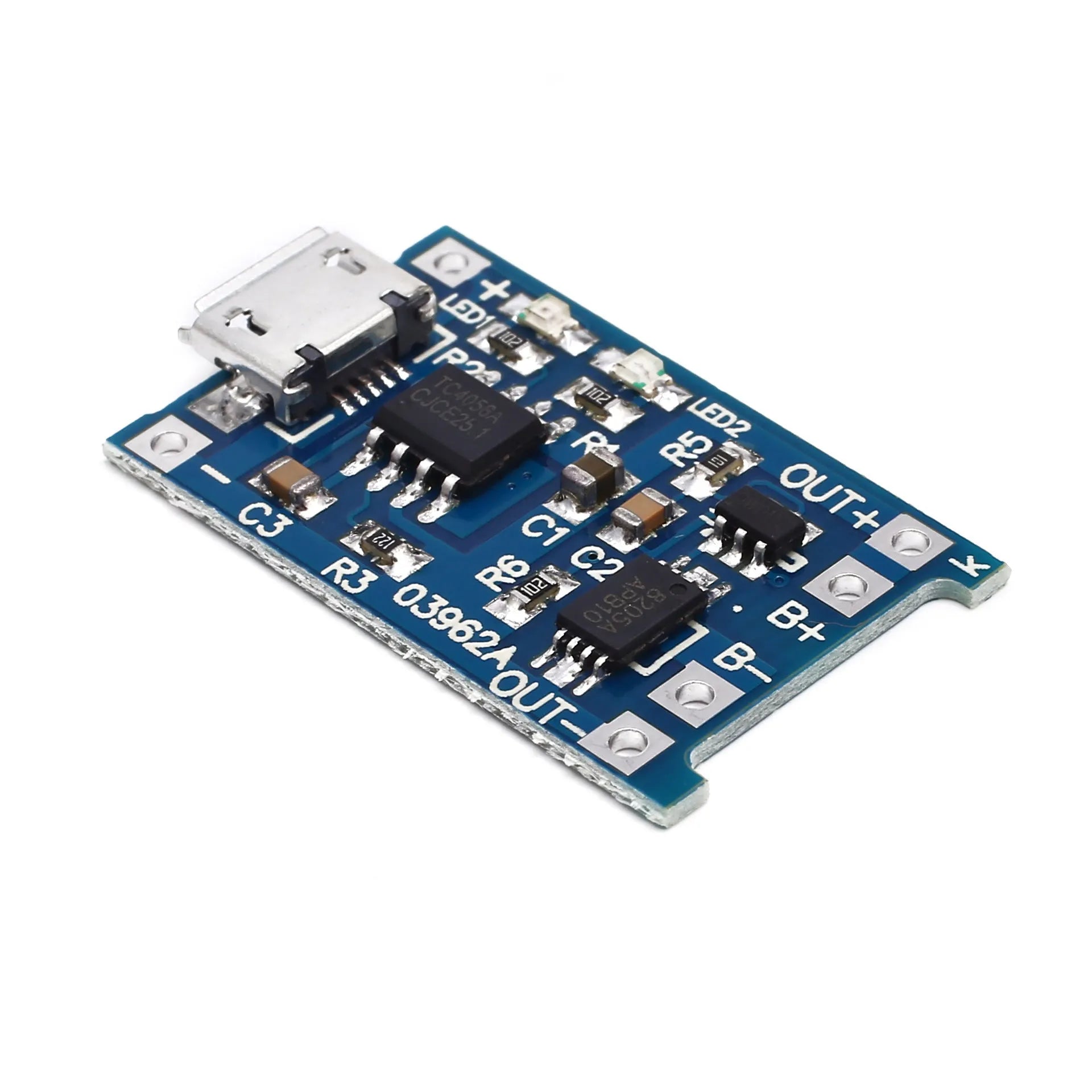

Constructed on a 2.6cm by 1.7cm blue PCB, the board utilizes surface-mount technology for compact component placement and reliable connections. The blue solder mask provides insulation between copper traces while allowing visual inspection of the circuit layout. Surface-mount components offer advantages in size reduction and manufacturing consistency compared to through-hole alternatives. This construction approach results in a durable board that withstands typical handling and installation stresses in electronic projects.

Practical Applications and Implementation Scenarios

This integrated board serves multiple applications where lithium battery power requires both efficient charging and comprehensive protection. Its compact dimensions and complete functionality make it suitable for various electronic projects, from hobbyist creations to prototype development. The combination of charging and protection in one unit simplifies circuit design while ensuring battery safety across different usage scenarios.

Electronic Project Integration

For electronics enthusiasts and professionals, this board simplifies lithium battery integration in projects ranging from portable devices to backup power systems. The 2.6cm by 1.7cm dimensions allow installation in space-constrained enclosures, while the 5V input compatibility enables power from standard USB sources. When designing portable electronics, the board's protection features prevent battery damage from user error or circuit faults. The integrated approach reduces component count and simplifies wiring compared to separate charging and protection modules.

Battery Maintenance and Longevity

Regular battery maintenance benefits from the board's precise voltage control, with the 4.2V ±1% cut-off ensuring optimal charging without overvoltage stress. Users maintaining multiple lithium battery packs appreciate the consistent charging termination that prevents capacity loss over time. The physical experience of battery management becomes more reliable, with the assurance that protection circuits monitor conditions continuously. This reliability stems from the specific voltage thresholds and current limits programmed into the protection ICs.

Educational and Development Uses

For educational purposes and circuit development, this board demonstrates practical battery management principles with measurable parameters. Students and developers can observe the 4.2V charging termination in action while testing the 3A overcurrent protection with controlled loads. The compact blue PCB allows easy inspection of component placement and circuit tracing. Development projects benefit from the complete functionality in one unit during prototyping phases before custom circuit design.

Performance Benefits and Operational Advantages

The integrated design delivers multiple benefits through combined charging and protection functions, creating operational advantages in various applications. Each specification contributes to overall performance, from the precise voltage control to the comprehensive protection mechanisms. These benefits translate to practical advantages in real-world usage, particularly for lithium battery applications requiring both efficiency and safety.

Cost Efficiency and Component Integration

Combining charging and protection functions in one 2.6cm by 1.7cm board reduces overall project costs compared to purchasing separate modules. The integrated design eliminates duplicate components like input/output connectors and mounting hardware required for multiple boards. Long-term value comes from the protection features that extend battery lifespan by preventing overcharging and deep discharge damage. This protection reduces replacement costs for lithium batteries that would otherwise fail prematurely from improper charging or excessive discharge.

Reliability and User Confidence

Operational reliability builds user confidence through multiple protection layers that activate automatically during fault conditions. The assurance that the 3A overcurrent protection will interrupt dangerous short circuits provides peace of mind during circuit testing and normal operation. Similarly, the knowledge that batteries won't discharge below 2.5V prevents the capacity loss that occurs with deep discharge cycles. This confidence stems directly from the measurable specifications programmed into the protection circuitry.

Implementation and Circuit Completion</h3 For immediate implementation, this board provides complete lithium battery management with minimal additional components required. The 5V input compatibility connects directly to common power sources, while the protection features operate automatically once connected. Choosing this integrated solution completes the power management portion of electronic projects efficiently, with the assurance that voltage control and safety features meet standard lithium battery requirements. The compact 2.6cm by 1.7cm dimensions fit most project enclosures while delivering full charging and protection functionality.
