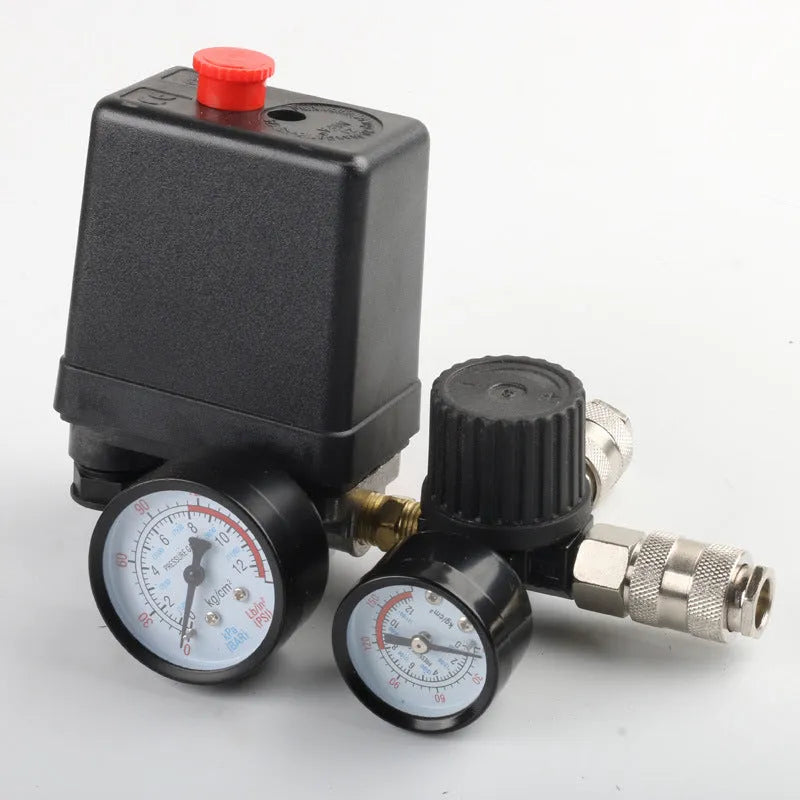

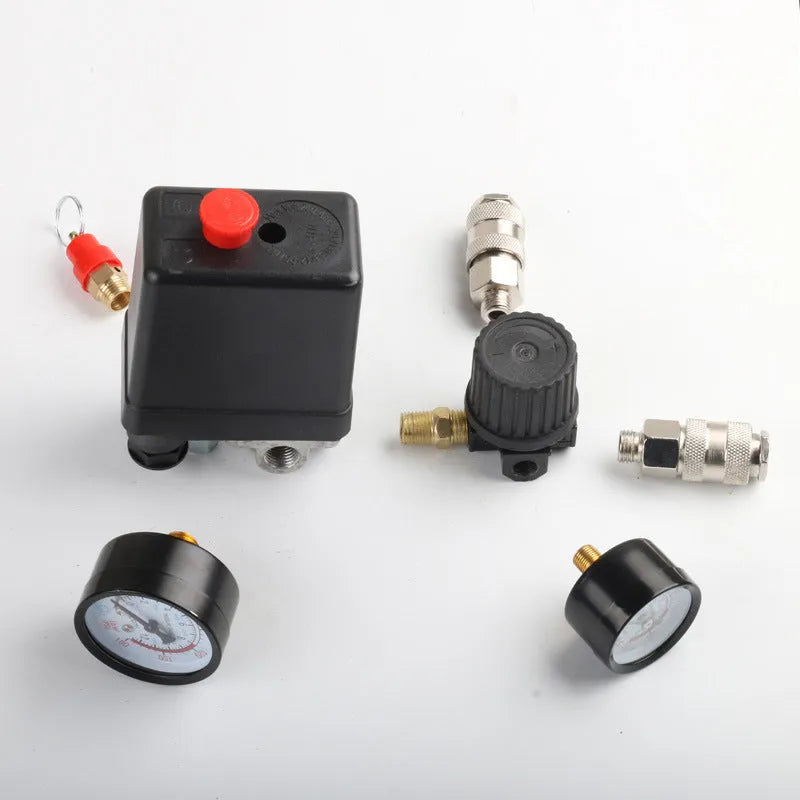

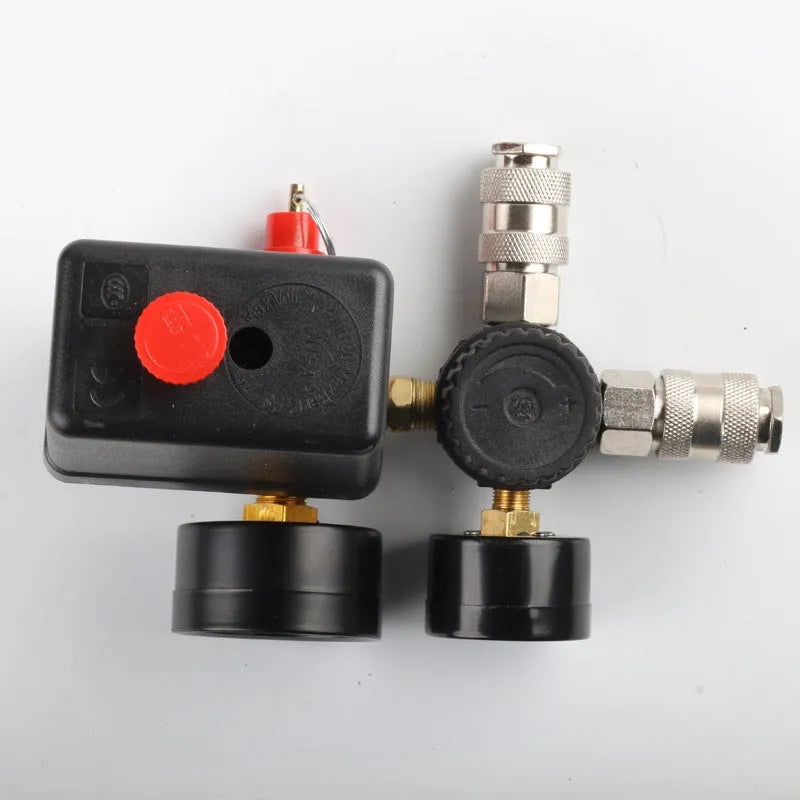

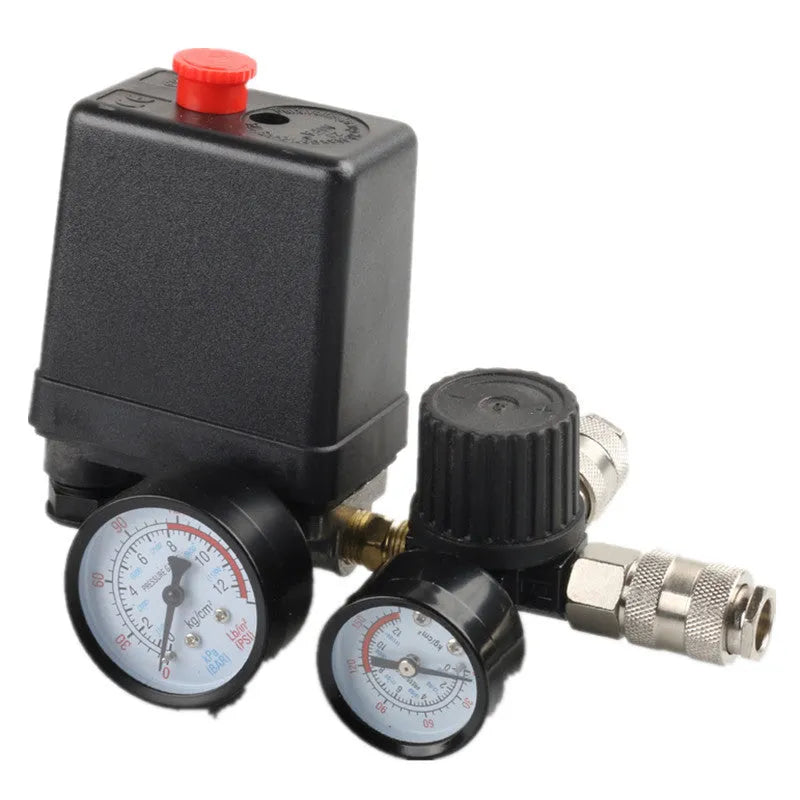

European Style Air Compressor Pressure Regulating Valve Assembly with 0.5-0.8 MPA Range

This pressure regulating valve assembly offers precise control over air compressor output, with a switching range of 0.5 to 0.8 MPA (5-8 BAR, 90-120 PSI). Designed for industrial and workshop environments, it features a normally closed contact method and supports both 220V and 380V rated voltages, making it adaptable to various electrical setups. The assembly includes a 6 mm exhaust pipe and a 9.5 mm pressure relief port for efficient air management, while its 80,000-cycle life ensures long-term performance in demanding applications.

Features and Quality of the Pressure Regulating Valve

This section details the specific components and construction that contribute to the valve's functionality and reliability, from its pressure settings to its durable build.

Design and Pressure Specifications

The valve is engineered with a switching pressure range of 0.5-0.8 MPA, allowing fine-tuned adjustments for pneumatic tools. The switch box, measuring 185 x 100 x 110 mm, clearly displays key specifications, including a maximum pressure of 12 BAR (175 PSI) to guide safe operation. Its normally closed contact method enhances safety by defaulting to an off position, and the 12 mm (1/4 inch) connector ensures a secure fit with standard air compressor systems.

Technical Performance Data

Rated for 220V and 380V voltages with a maximum current of 20A, this valve accommodates diverse electrical requirements. It operates at a working pressure of 5-8 KG and is tested to withstand 80,000 cycles, indicating robust performance under frequent use. The 6 mm exhaust pipe and 9.5 mm outer diameter pressure relief port facilitate controlled air release, contributing to efficient system management and reduced wear.

Construction and Durability Details

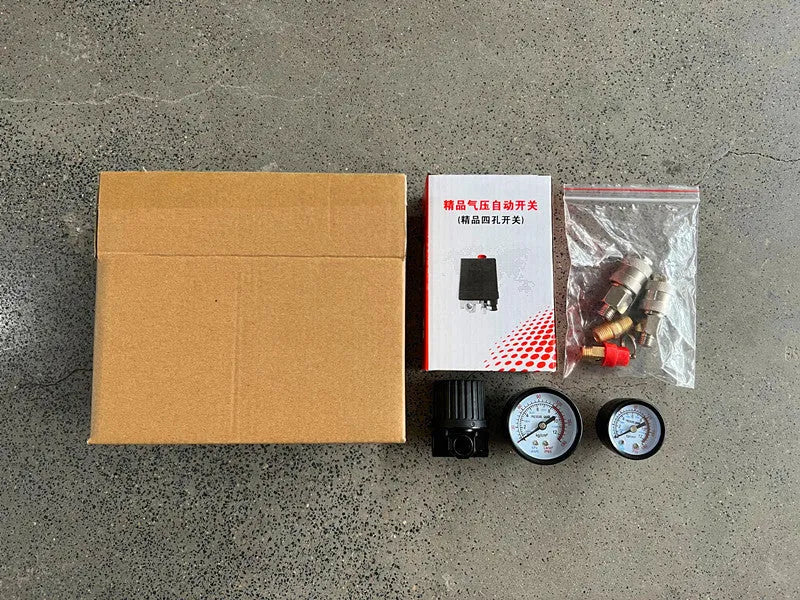

Built to last, the valve uses durable materials in its switch components to achieve the 80,000-cycle life rating. Metal fittings for the connector and pressure relief port offer corrosion resistance, suitable for humid or dusty environments. With a net weight of 635 grams and a gross weight of 720 grams including packaging, it balances sturdiness with manageable handling during installation.

Applications of the Pressure Regulating Valve

This valve suits a range of scenarios where precise air pressure control is essential, from professional workshops to smaller DIY projects.

Professional Industrial Use

In manufacturing or automotive repair shops, this valve regulates air supply to pneumatic tools like impact wrenches or spray guns, ensuring consistent operation at 0.5-0.8 MPA. Its 80,000-cycle durability supports high-frequency use, while compatibility with 220V and 380V systems allows integration into existing industrial setups without electrical modifications.

Everyday Workshop Applications

For home workshops or small businesses, the valve provides reliable pressure control for tasks such as inflating tyres or powering airbrushes. The tactile feedback from adjusting the pressure range, combined with the secure feel of the 12 mm connector, enhances user confidence during operation, making it straightforward to achieve desired air flow.

Versatility in System Integration

This assembly can be incorporated into various pneumatic systems beyond compressors, such as HVAC controls or agricultural equipment. The 6 mm exhaust pipe and 9.5 mm pressure relief port allow for custom configurations, while its compact size (185 x 100 x 110 mm) fits into tight spaces, offering flexibility in installation layouts.

Benefits of the Pressure Regulating Valve

Users gain from precise control, durability, and safety features that enhance overall system efficiency and reduce maintenance needs.

Long-Term Value and Cost Efficiency

With an 80,000-cycle life, this valve reduces replacement frequency compared to lower-rated alternatives, offering savings over time. Its ability to handle both 220V and 380V systems minimises the need for additional adaptors, providing a cost-effective solution for workshops with varying electrical infrastructures.

User Experience and Satisfaction

Reasons to Purchase This Valve Choose this pressure regulating valve for its specific 0.5-0.8 MPA range and 80,000-cycle durability, which ensure precise air control and long service life. Its compatibility with 220V and 380V systems adds versatility, making it a practical investment for enhancing pneumatic tool performance across different environments.
