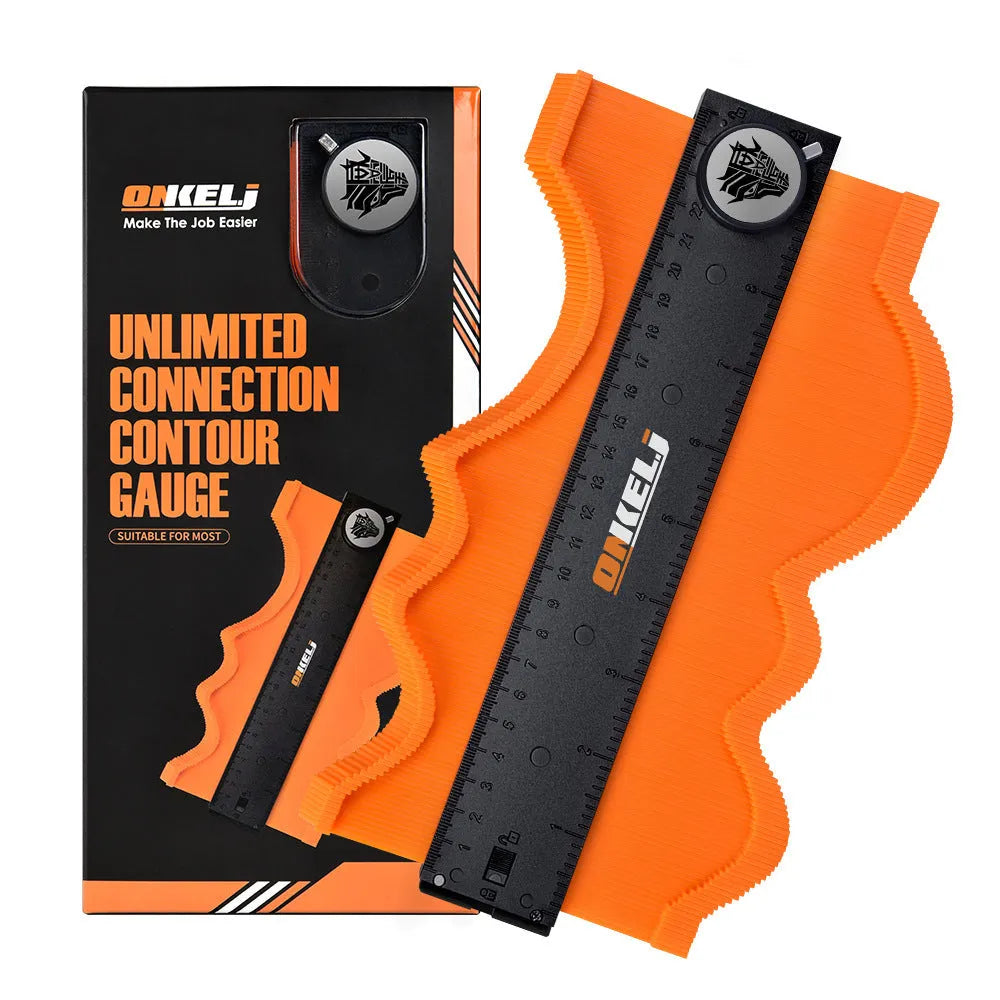

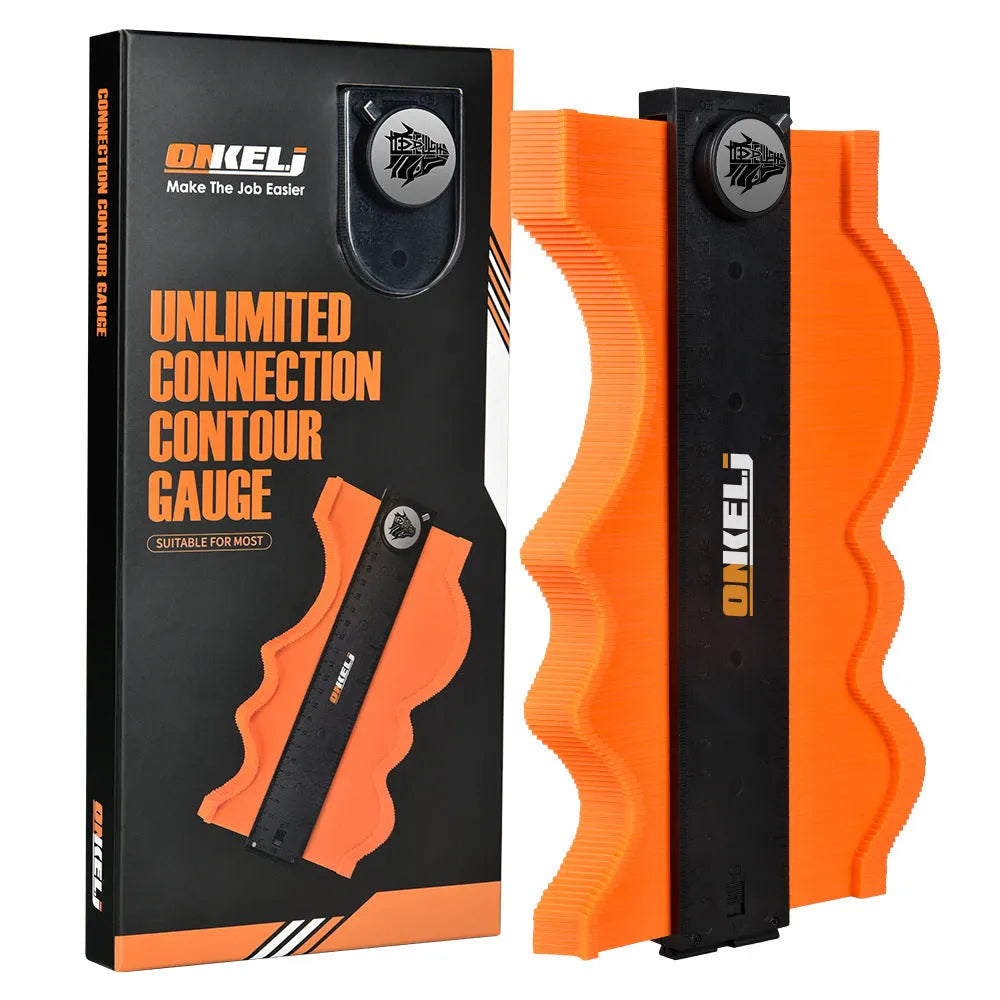

10-Inch Contour Gauge with Infinite Splicing and 1mm Accuracy for Precise Shape Replication

This contour gauge provides workshop professionals and DIY enthusiasts with a reliable solution for transferring irregular shapes. With 10-inch infinite splicing capability and 1mm accuracy, it captures mouldings, pipe contours, and architectural details precisely. The lock belt mechanism secures your measurement, while the ABS and stainless steel construction ensures durability during repeated use in woodworking, plumbing, and renovation projects.

Features and Construction Quality

The gauge combines measurement precision with practical design elements that enhance workshop efficiency. From the infinite splicing system to the secure locking mechanism, each component serves a specific function in the shape transfer process.

Infinite Splicing Design

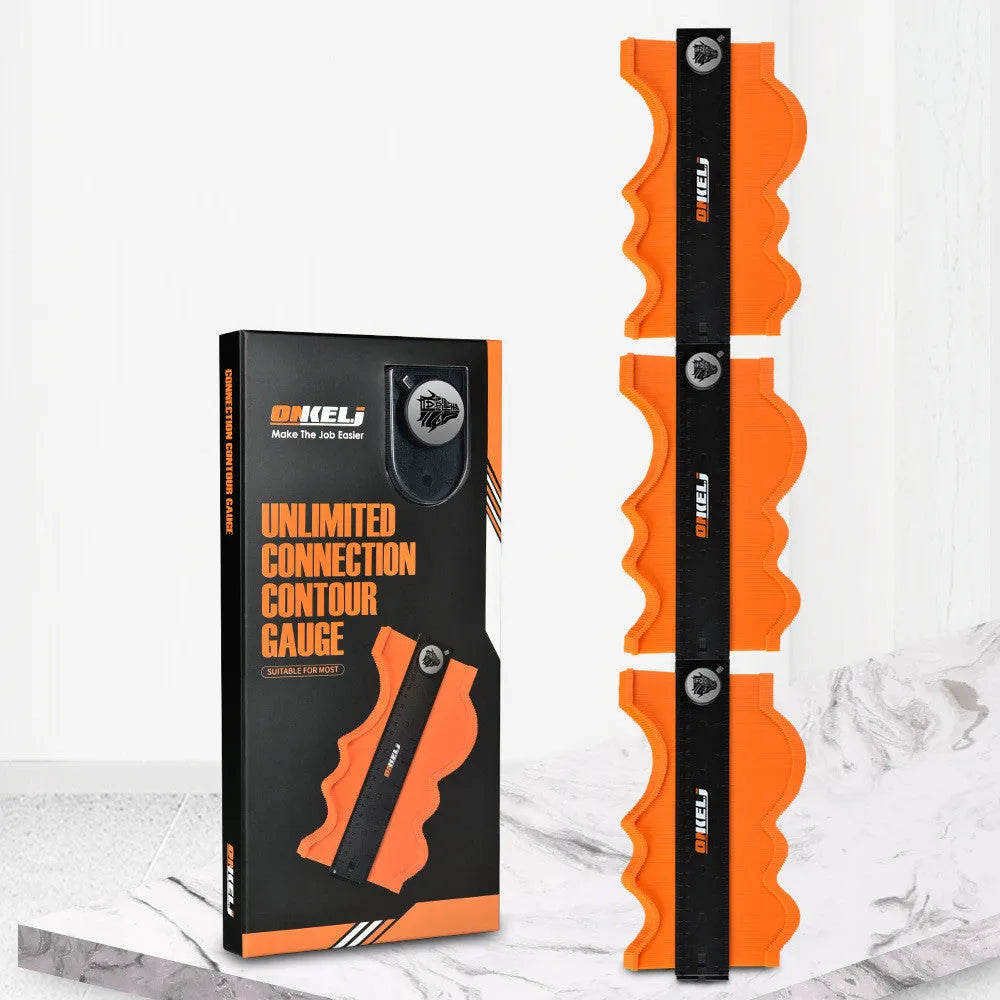

With 10-inch (254mm) continuous profiling capability, the gauge handles curves that exceed standard measurement tools' limitations. The closely spaced stainless steel pins create a smooth contour line without gaps, while the infinite splicing system allows profiling of continuous shapes without resetting. This design proves particularly useful for crown mouldings and curved trim work where traditional rulers fall short.

Measurement Accuracy Specifications

Locking Mechanism ConstructionThe lock belt engages with minimal force, applying even pressure across all pins to prevent distortion of the captured shape. Unlike friction-based systems that can slip, this positive locking mechanism maintains the profile during transfer operations. The construction withstands repeated engagement cycles without wear affecting performance, ensuring reliable operation throughout the tool's service life.

Practical Applications and Uses

From professional trades to home improvement projects, this contour gauge addresses specific measurement challenges across multiple disciplines. Its design accommodates various materials and working conditions while maintaining measurement integrity.

Professional Trade Applications

Plumbers use the gauge to profile pipe contours for accurate cutting and fitting, particularly when working with irregular installations. Carpenters transfer moulding shapes for precise mitre cuts, while tilers profile irregular edges for custom trim pieces. The 265mm × 130mm × 27mm dimensions allow comfortable handling while providing sufficient profiling area for most trade applications without being cumbersome in tight spaces.

Everyday DIY Scenarios

Home renovators appreciate the smooth pin movement when capturing architrave profiles for replacement work, with the stainless steel pins gliding easily into position. The firm click of the engaged lock belt provides tactile confirmation that the measurement is secure before transfer. When cutting laminate flooring around irregular obstacles, the gauge captures the exact contour for precise trimming without trial-and-error adjustments.

Versatility Across Materials

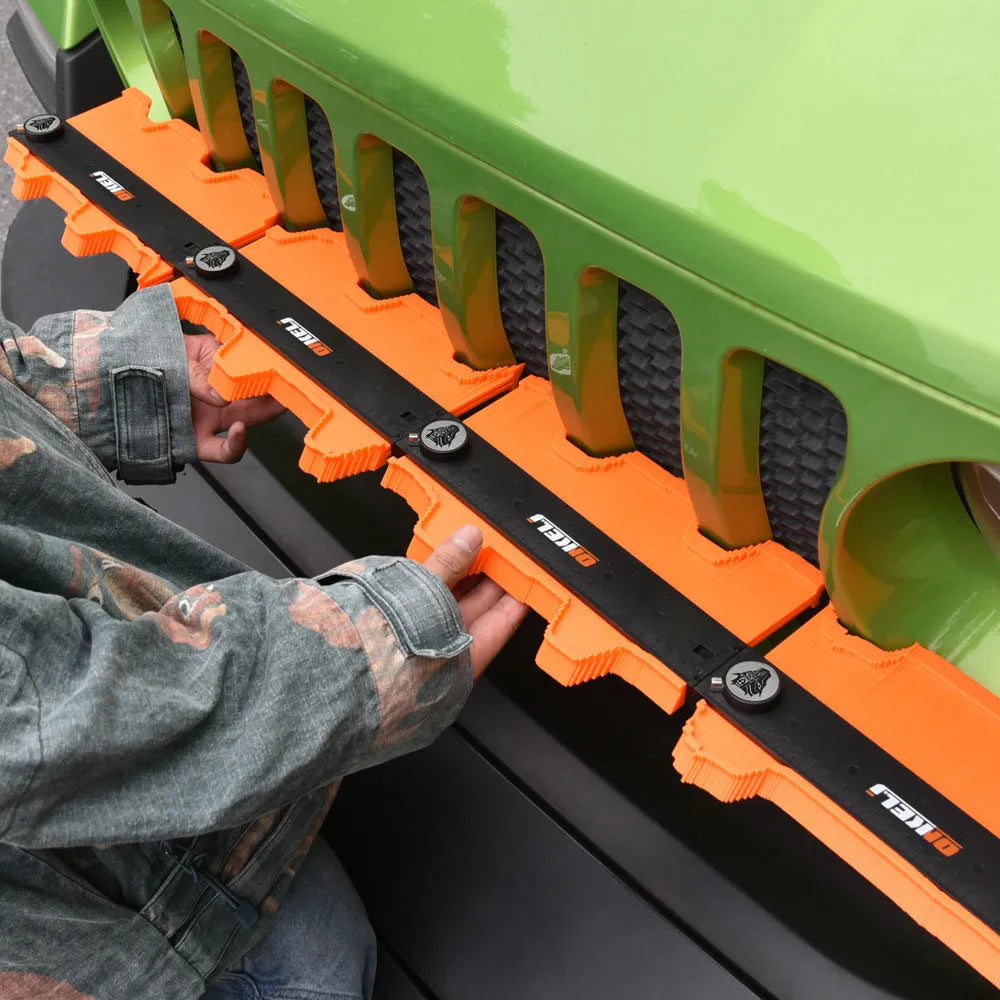

Beyond wood and pipe work, the gauge profiles metal components for fabrication projects and plastic trim for automotive applications. The infinite splicing system accommodates both convex and concave shapes equally well, while the lock belt maintains the profile regardless of material density. This versatility makes it suitable for mixed-material projects where traditional measurement methods prove inadequate.

Benefits and Value Considerations

The gauge delivers measurable advantages in accuracy, efficiency, and material savings that justify its inclusion in any toolkit. These benefits become particularly apparent when compared to alternative measurement methods.

Long-Term Value Proposition

Compared to disposable templates or repeated measurement attempts, the gauge reduces material waste through accurate first-time transfers. The ABS and stainless steel construction withstands workshop conditions without degradation, avoiding replacement costs associated with less durable tools. For professionals, the time saved on each measurement task accumulates significantly over months of regular use.

User Experience and Satisfaction

Confidence in measurement accuracy comes from the 1mm specification and positive locking mechanism, eliminating second-guessing during critical cuts. The peace of mind when transferring expensive material profiles stems directly from the gauge's consistent performance and secure locking system. Users appreciate not having to remake cuts or compensate for measurement errors in finished work.

Practical Purchase Considerations

Select this contour gauge when your projects involve irregular shapes that challenge standard measurement tools. The 10-inch capacity handles most residential and light commercial applications, while the 1mm accuracy ensures professional results. Consider it essential for any toolkit where precise shape replication affects project outcomes and material efficiency.
