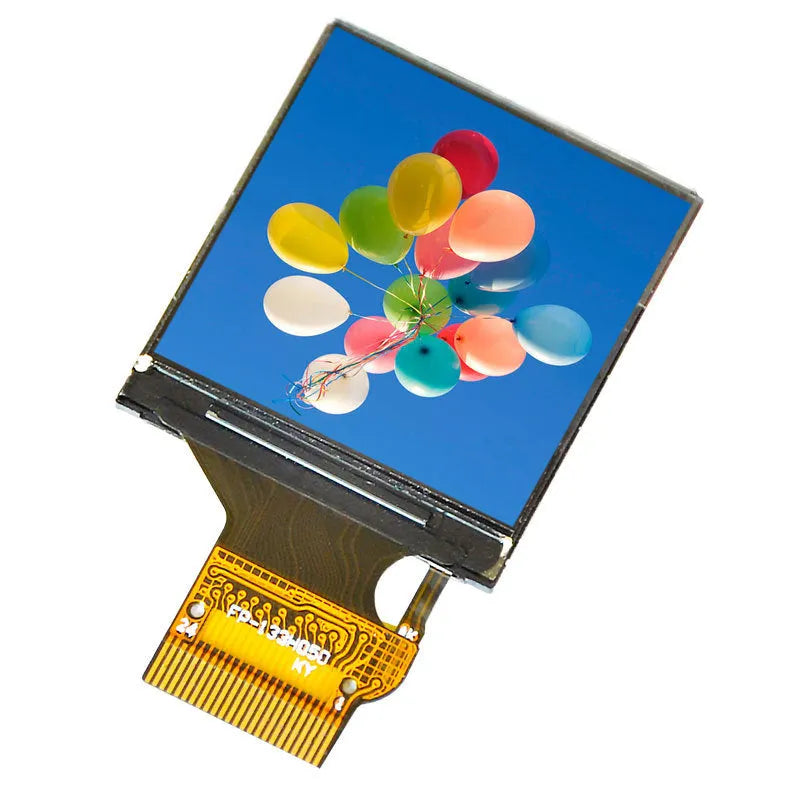

1.3-inch 240x240 IPS LCD Full Colour Display with Plug-in Interface

This 1.3-inch IPS LCD display module delivers vivid colour reproduction and sharp 240x240 resolution for electronic projects requiring clear visual feedback. With its compact 27.78x39.22mm physical dimensions and 23.4x23.4mm viewing area, this display provides sufficient screen space while maintaining a small footprint. The adjustable display orientation allows flexible mounting in various positions, and the ST7789 control chip supports both 8-bit parallel port and 4-wire SPI interfaces for connection versatility.

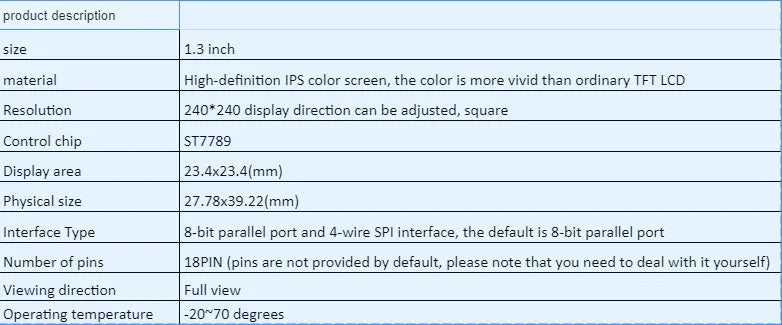

Display Features and Technical Specifications

This section details the specific measurements, interface options, and performance characteristics that define this LCD display module's capabilities.

Screen Dimensions and Viewing Area

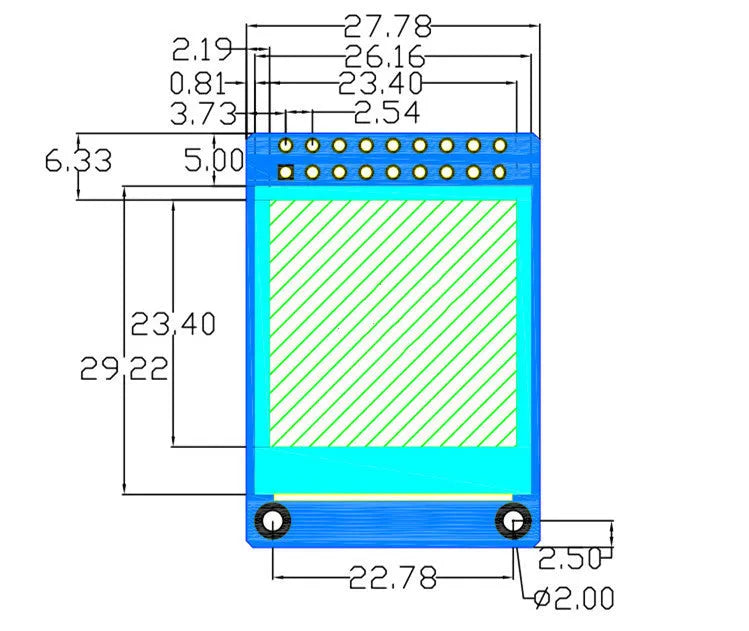

The display features a 1.3-inch diagonal measurement with a square 240x240 resolution. The actual viewing area measures 23.4x23.4mm, providing sufficient space for displaying text, numbers, or simple graphics. The physical dimensions of 27.78x39.22mm make this display suitable for projects where space is limited but visual feedback is required.

Interface and Connection Options

The ST7789 control chip supports both 8-bit parallel port and 4-wire SPI interfaces, with the 8-bit parallel port configured as default. This dual-interface capability allows integration with various microcontroller platforms. The module features an 18-pin configuration, though pins are not provided by default and require separate sourcing based on project requirements.

Display Performance Characteristics

Constructed with IPS (In-Plane Switching) technology, this LCD produces more vivid colours than standard TFT LCD panels. The full-view viewing direction ensures consistent image quality from different angles. The display operates within a temperature range of -20 to 70 degrees Celsius, making it suitable for both indoor and many outdoor applications.

Practical Applications and Usage Scenarios

This section explores specific situations where this LCD display module provides practical solutions for electronic projects and devices.

Electronic Project Integration

This display module integrates effectively with microcontroller projects requiring visual feedback. The 240x240 resolution provides sufficient detail for displaying sensor readings, menu systems, or status indicators. The adjustable display orientation allows mounting in different positions within project enclosures, while the dual interface options accommodate various connection requirements.

Everyday Device Applications

The compact dimensions make this display suitable for integration into portable devices, DIY electronics, or custom instrumentation. The vivid colour reproduction of the IPS screen enhances readability, particularly when displaying colour-coded information or graphical elements. The physical size of 27.78x39.22mm allows incorporation into projects where space constraints are a consideration.

Versatile Display Solutions

Beyond basic data display, this module's adjustable orientation and interface options support various applications. The square format works well for displaying circular gauges, menu systems, or symmetrical layouts. The operating temperature range of -20 to 70 degrees Celsius enables use in environments with temperature variations, from indoor climate-controlled spaces to outdoor protected installations.
